| Categories | Face Recognition Body Temperature Scanner |
|---|---|
| Brand Name: | Anyuan |
| Model Number: | AY-TDNT7 |
| Certification: | CE, FCC |
| Place of Origin: | China |
| MOQ: | 1pcs |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 10K per month |
| Delivery Time: | 3 days |
| Packaging Details: | carton |
| Display: | 7-inch IPS HD display |
| OS: | Linux |
| Face Recognition: | Yes |
| Accuracy: | ±0.2(℃) |
| Access Control: | Yes |
| Face Capacity: | Support 22400 face comparison library and 100,000 face recognition records |
7inch AI Thermometer Access Control Machine System Auto Terminal Scanner Body Face Recognition
Application Scenario: Suitable for office areas, hotels, access gates, office buildings, schools, shopping malls, shops, communities, public service and management projects and other places where face access control is required.
Features:
- 7-inch IPS HD display
- IP34 rated dust and water resistant

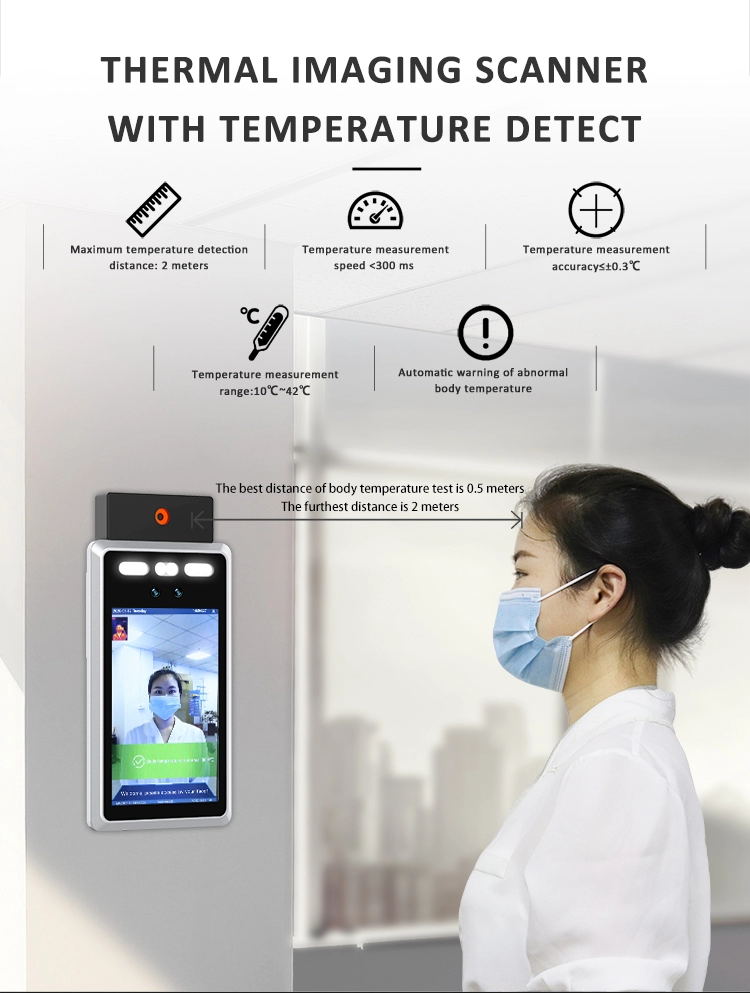

- Support mid-range temperature measurement and real-time warning of high temperature
- Support electronic voice broadcast (normal human body temperature
or super high alarm, face recognition verification results)
- Non-contact automatic body temperature detection, brush human
face and perform high-precision infrared human temperature
acquisition at the same time, fast and high effect
- Temperature measurement range 30-45 (℃) Accuracy ± 0.2 (℃)

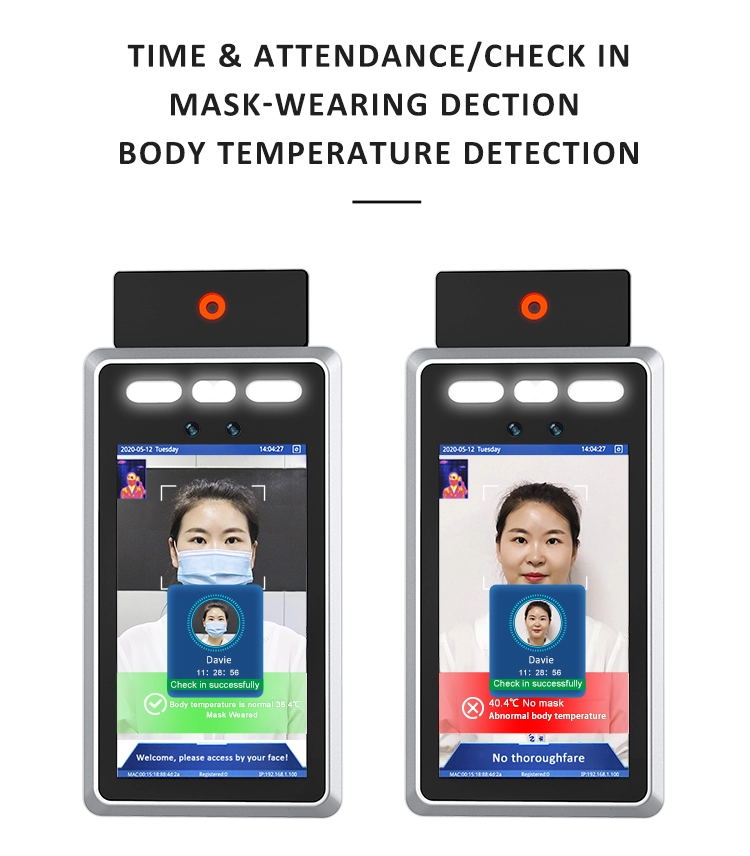

- Automatically identify unmasked personnel and provide real-time
warning
- Rich interface protocols, support SDK and HTTP protocols under
multiple platforms such as Windows / Linux
- MTBF> 50000 H
- Support binocular live detection
- Unique face recognition algorithm to accurately recognize faces, face recognition time <500ms
- Support human motion tracking exposure in strong backlight
environment, support machine vision optical wide dynamic ≥80dB
- Adopt Linux operating system for better system stability
- Support 22400 face comparison library and 100,000 face
recognition records
- Support one Wiegand input or Wiegand output
- Supports fog through, 3D noise reduction, strong light
suppression, electronic image stabilization, and has multiple white
balance modes, suitable for various fields Scene demand
- Support temperature data SDK and HTTP protocol docking
- Automatically register and record information, avoid manual
operation, improve efficiency and reduce missing information
Specification:
| Model | AY-TDNT7 |
| Hardware | |
| Chipset | Hi3516DV300 |
| System | Linux operation system |
| RAM | 16G EMMC |
| Image sensor | 1/2.7" CMOS |
| Lens | 4.5mm |
| Camera Parameters | |
| Camera | Binocular camera supports live detection |
| Effective pixel | 2Mega pixel,1920*1080 |
| Min. lux | Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 |
| SNR | ≥50db(AGC OFF) |
| WDR | ≥80db |
| Face Recognition | |
| Height | 1.2-2.2 M, angle adjustable |
| Distance | 0.5-2 Meters |
| View angle | Vertical ±40 degree |
| Reco. Time | ＜500ms |
| Temperature | |
| Range | 30-45(℃) |
| Accuracy | ±0.2(℃) |
| Distance | 0.3-0.8m |
| Response time | ＜300ms |
| Interface | |
| Internet interface | RJ45 10M/100M Ethernet |
| Weigand port | Support input/output 26 and 34 |
| Alarm output | 1channel relay output |
| USB port | 1USB port (Can be connected to ID identifier) |
| General | |
| Power input | DC 12V/3A |
| Power consumption | 20W(MAX) |
| Working temperature | 0℃ ～ +50℃ |
| Humidity | 5～90%, no condense |
| Dimension | 123.5(W) * 84(H) *361.3(L)mm |
| Weight | 2.1 kg |
| Column aperture | 33mm |
|
