| Categories | Drone Signal Detector |
|---|---|
| Brand Name: | TX TELSIG |
| Model Number: | TX-JZTC01 |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiated |
| Payment Terms: | T/T,Paypal, Etc. |
| Supply Ability: | 100,000pcs/month |
| Delivery Time: | In 2 day |
| Packaging Details: | Kraft paper box with protection foam |
| Minimum detection altitude: | ≤0meter |
| Detection success rate: | ≥99% |
| Weight: | 12kg |

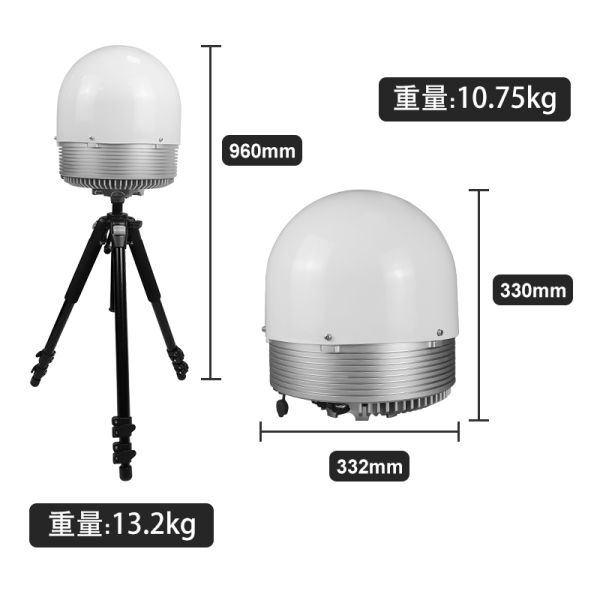

| Volume: | 330mm x 330mm x 330mm |
| Protection grade: | IP65 |
| power dissipation: | 80w |
| Position accuracy(DJI): | Positioning error<5 meters |
| Detection angle: | 360° |
| Detection range: | 10km（Good radio environment） |
| Direction finding accuracy(exclude DJI): | Hover 3 °, lateral flight 8-9 ° |
| Number of drones detected simultaneously: | ≥60 |
| Company Info. |
| Shenzhen TeXin electronic Co., Limited |
| Verified Supplier |
| View Contact Details |
| Product List |
1.1Brief introduction
TX-JZTC01 is a wireless passive automatic detection system that supports 360 degree omnidirectional detection coverage, which can detect the drones within 10KM, with advanced warning, black and white name recognition, ID recognition, and linkage automatic strike support for UAV defense.
| Function characteristics | Description |
| Drone detection | Adopting adaptive drone protocol control technology, deeply analyzing drone signals, identifying the unique ID of each drone, and accurately identifying drones. For some DJI models, the pilot position and return point coordinates can be obtained; |
| Black and White List | Accurately identify drone models and unique electronic fingerprints to achieve a black-and-white list, and simultaneously identify brands and corresponding ID numbers of ≥ 220 different drones (identity authentication). |
| Expand multi band strike | Capable of expanding the interference capability of multiple frequency bands, covering the vast majority of drones on the market+ |
| Networking | The system can network multiple devices through a cloud server, which can observe the online/abnormal status of each device. It can remotely control the device through a mobile terminal (mobile IPAD), including but not limited to viewing the device system operation interface, receiving alarm information, viewing black and white lists, and enabling defense functions |
| Omnidirectional detection | The product has the ability to handle horizontal 360 ° omnidirectional interference |
| Portability | Installed with fixed poles and tripods, it can meet the protection needs of long-term deployment in key areas; Can also use a tripod to quickly erect to meet the protection needs of temporary tasks such as important meetings and group activities |
| Safety | With user management function, divided into administrators and users, and encrypting data to ensure user data security. |
| Detection range | 10km(Good radio environment) |
| Detection frequency bands | 900Mhz,2.4Ghz,5.8Ghz |
| Accurate identification | Accurate identification of drone models and unique electronic fingerprints, simultaneous identification of ≥ 220 different drone brands and corresponding ID numbers (identity authentication), and identification of drone positions and remote control positions (some aircraft) |
| Detection angle | 360° |
| Direction finding accuracy(exclude DJI) | Hover 3 °, lateral flight 8-9 ° |
| Number of drones detected simultaneously | ≥60 |
| Position accuracy(DJI) | Positioning error<5 meters |
| Minimum detection altitude | ≤0meter |
| Detection success rate | ≥99% |
| Weight | 12kg |
| Volume | 330mm x 330mm x 330mm |
| Protection grade | IP65 |
| power dissipation | 80w |
|
