360˚ Rotary Flame Automatic Brazing Machine For Copper Heat Exchanger

Categories Automatic Brazing Machine
Brand Name: HeJin
Certification: Third party calibration certificate(cost additional)
Place of Origin: China
MOQ: 1 Set
Price: Negotiatable
Payment Terms: T/T, L/C
Supply Ability: 3 set per 3 month
Delivery Time: 90 days
Packaging Details: Plywood
Product name: automatic flame brazing machine
test sample: lnet & outlet tubes of copper heat exchangers
test station: 3 stations
control mode: PLC control
Turntable cycle: ≤18sec
Total capacity: ≥1600pieces/8h
Turntable rotation angle: 360˚
Wire feeding accuracy: ±0.5mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

360˚ Rotary Flame Automatic Brazing Machine For Copper Heat Exchanger

Rotary Flame Brazing Machine For Copper Heat Exchanger In/Out Let With 3 Stations


Product information:

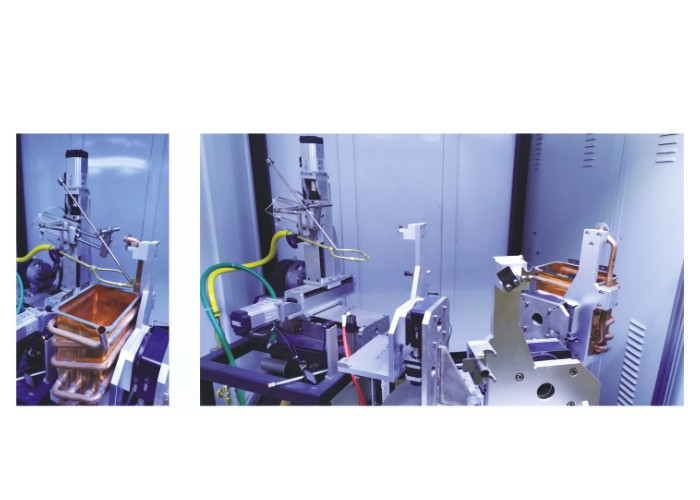

This machine is for brazing of inlet & outlet tubes of copper heat exchangers.

We has built many different types of brazing machines for brazing of copper or aluminum distributers.

This 3 station index machine is used for less production. For mass production, we would like to recommend 6-10 station index machines. Also, we can use gas/ oxygen or gas/air flame depending on an item condition.


Whether your application calls for a simple brazing torch or a fully automated brazing system, we HeJin have a vast range of experience in the field, and have developed their own range of brazing benches.

Brazing benches can be designed with a range of control options to meet your requirements, from manually operated, to full automated PLC controlled systems. Automatic Brazing Machine


Parameter:

Turntable cycle≤18sec
Total capacity≥1600pieces/8h
Wire feeding position error≤1mm
Wire feeding accuracy±0.5mm. Automatic Brazing Machine
Fixture rotation angle error±0.5˚
Fixture rotation angle0-90˚
Turntable rotation angle360˚
Test station3 stations. (Load/unload station, brazing sation, colling sattion)
