| Categories | CNC Laser Cutting Machine |
|---|---|
| Brand Name: | AoShuo |
| Model Number: | 2040 |
| Certification: | CE ISO |
| Place of Origin: | SHANDONG, CHINA |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50/MONTH |
| Delivery Time: | 4 weeks |
| Packaging Details: | Packing in steel pallet |
| Name: | 1070nm CNC Steel Cutting Machine |
| Laser Wavelength: | 1070nm |
| Laser Type: | Fiber Laser |
| Key Selling Points: | High accuracy |
| Power (watt): | 800W 1000W 1500W |
| Power Supply: | 380V 50Hz |
| Cooling Method: | Water Cooling |
| Cutting Thickness: | 30mm |
| Material Cutting Thickness: | 0.2-30mm |
| Cutting area: | 3000mm×1500mm |
| Function: | Cutting Metal Materials |

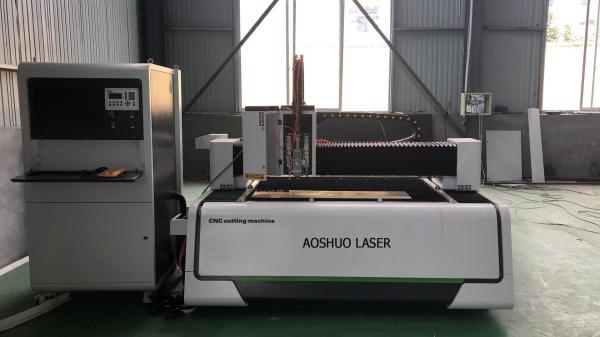

380V AoShuo 2040 1070nm CNC Steel Cutting Machine
Products Description
(1) High-performance laser source and stable operating system which
make the best cutting effect.
(2) The machine owns perfect cooling system, lubrication system and
dust removal system, to ensure that it can operate stably,
efficiently and durably.
(3) The machine is capable of automatic height adjustment to
maintain constant focal length and stable cutting quality.
(4) The machine is used for cutting a variety of metals with
excellent and stable cutting quality.
Features
1. Outstanding cutting cross section, high precision, good
stability, satisfying the process demands of precision parts.
Dynamic performance is stable, able to work for long time.
2. Capable of cutting both non-metal and metal, able to cut
stainless steel, carbon steel, acrylic and wood, etc.
3. Laser cutting head with auto focusing system. Laser cutting head
automatically adjust its height along the metal sheet surface,
ensuring the focal length keeps the same all the time. Smooth
cutting edge, no need polishing or other further handling. Flat and
wavy steel sheets can be cut with this machine.
Main configuration:
| Item | Name | Quantity | Brand |
| Laser | 800W fiber laser | 1 SET | Maxphotonics |
| Cutting head | Specialized cutting head | 1 SET | RayTools BT( Switzerland) |
| Machine bed | 1 SET | China | |
| Precise Rack | 1 SET | TAIWAN DINSENSE | |
| Machine body | Precise linear guide rail | 1 SET | TAIWAN HIWIN/ TAIWAN shac |
| X,Y axis servo and driver | 1 SET | LETRO | |
| Reducer system | 1 SET | TAIWAN DINSENSE | |
| controller | 1 SET | FRANCE Schneider | |
| Machine bed accessories | 1 SET | China | |
| Digital cutting system | Controller system | 1 SET | Shanghai cypcut /Shanghai Empower |
| Accessories | Chiller | 1 SET | Teyu |
| Waste recycling equipment | 1 SET | China |
Technical parameters:
| Model | RL3015 |
| Laser Working Medium | ND:YVO4 |
| Laser Wavelength | 1070nm |
| Power | 800 W/1000W/1500W |
| Beam Quality | ＜0.373mrad |
| Max cutting thickness | 10mm carbon steel |
| Working area | 3000mm×1500mm |
| Positioning Accuracy | ≤±0.05㎜/m |
| Repeatition Accuracy | ≤±0.05㎜/m |
| Power Supply | 380V 50Hz |
|
