2 RS232 Wifi Industrial Embedded Computer 17 Inch Resistive Touch Open Frame

Categories Industrial Touch Panel PC
Brand Name: Shinho
Model Number: SC17
Certification: CE , FCC , RoHS
Place of Origin: Shenzhen , China
MOQ: 1 Piece
Price: Negotiable
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Packaging Details: 1pcs/carton weight: 7 KG/pcs packing size:53×47×18 cm
Size: 17 inch
CPU: Intel® Celeron J1900 , quad core , 2.0GHz, fanless
RAM: 8 G DDR3
Hard disk: 128G (32GB,64GB,256GB optional)
Touchscreen Type: 5 wire resistive touch
Resolution: 1280*1024
IP grade: front panel IP65 waterproof
Material: aluminium alloy
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

2 RS232 Wifi Industrial Embedded Computer 17 Inch Resistive Touch Open Frame

17 Inch Resistive Touch Open Frame Embedded Computers with 2 RS232 Wifi


This 17'' Open Frame Embedded Computers is with aluminium alloy material, light weight,good heat disipattion,pure flat screen,front panel IP65 waterproof and dustproof. suitable for a wide variety of applications. The PC is built with the Bay Trail Celeron J1900 quad-core CPU, Fanless,low power consumption,these panel PCs are easily installed into machinery, control panels and switching cabinets. CNC Machine, self service kiosk. Support open frame kits mounting from inside of machine,embedded mounting,wall mounting.


Features


1. 17 " LCD panel,flat screen, 1280*1024 resolution. 4:3 Aspect ratio.


2. Adopt 5 wire resistive touch screen, high precision, durable, anti-interference.


3. Open frame kits will be provided,suitable for install the monitor from the inside machine, only the screen will be showed on the machine.


4. CPU: Intel® Celeron J1900 , quad core , 2.0GHz, fanless


5. 8G RAM,128 G SSD.


6. High performance motherboard, 365/ 7x24 continuous operation.


7. I/O Interface : 2×USB 2.0,2×USB 3.0, 1 x COM RS232,1×VGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC.


Fanless Industrial Computer 10.4" Applications


Self-filling machine


self-service library


Car parking Kiosk


Vending machine


Sorting machine


Entertainment


Asset monitoring


Data concentrators


Specification


Model:SC17
PC
CPUIntel® Celeron J1900 , quad core , 2.0GHz, fanless
ChipsetIntel ValleyView SSA-CUnit
Memory8G DDR3, ( Max. 8G)
Hard Drive Capacity128G SSD
Hard Drive OptionalSSD: 32G,64GB,256GB
HDD: 500GB,1TB
GraphicsCPU Integrated graphics HD Graphics and support 1080p HD photo quality
AudioRealtek ALC662, High Definition Audio (HD), Line in, Line out
Network1×Realtek RTL 8111E Gigabit Ethernet controller
Wireless NetworkWIFI
I/O Interface3×USB 2.0,1×USB 3.0, 2 x COM RS232
1×VGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC
Operation SystemSupport Windows 7/8/10, Linux, Ubuntu, Debian etc.
LCD panel
Panel size17"
Resolution1280*1024
Aspect ratio4:3
Support Color16.7M colors
Brightness (cd/m²)400+
Response time5ms
Contrast ratio1000:1
View angle80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type5 wire resistive touch
Touch InterfaceUSB (RS232 optional)
Touch response time<8ms
Luminousness90%
Surface Hardness3H
Working Life>35 million times
Touch options( capacitive touch, IR touch optional)
Power Supply
External Power SupplyAC 100 - 240V
Working voltageDC 12V
Power consumption≤45W
Enclosure
MaterialAluminum Alloy
ColorSilver , Black, white, color can be customized
VESA mounting75×75mm/100×100mm
IP gradefront panel IP65 waterproof
Operating Environment
Temperature Rangeoperating: -10 to 60°C, storage :-20 to 80°C
Relative humidity5%~95% @ 40° C, non-condensing
Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight6.5kg
Gross weight7kg
Product Dimension40.2×33.1×5.97 cm
Packing size53×47×18 cm
AccessoriesPower adapter,embedded screws,user manual,warranty card
Other
Mounting (options)open frame
embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty1 year warranty
CertificatesCE,FCC,RoHS

Pictures

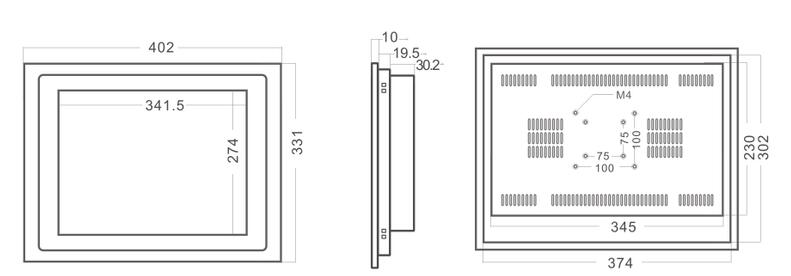

Drawing
