| Categories | Thermal Imaging Module |
|---|---|
| Model Number: | A6417S |
| Place of Origin: | China |
| MOQ: | 1 |
| Payment Terms: | All are acceptable except L/C |
| Supply Ability: | 500/Month |
| Delivery Time: | 3-5days |
| Price: | Negotiation |
| Special Features: | Waterproof / Weatherproof |
| Spectral Response: | 8-14 μm |
| Pixel Pitch: | 17um |
| Control Port: | RS232 |
| Dimension: | 40x40x48mm |
| Technology: | Infrared |
| IR Resolution: | 640x512 |
| NETD: | 45mk@30°C, #F1.0 |
| Detector: | Uncooled VOX FPA |
| weight: | 100g |
| Company Info. |
| Jiangsu Ascendent Optronics INC. |
| View Contact Details |
| Product List |
| Performance | |
| FOV/Minimum Focus Distance | 31° x25°/1m(19mm) |
| N.E.T.D | ≤45mK@30°C, #F1.0 |
| Detector Type | Uncooled microthermal VOx FPA |
| Resolution | 640X512 |
| Wave range | 8-14um |
| Spatial resolution | 0.89mrad(19mm Lens) |
| Environment | |
| Operating Temperature | -40°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Humility | 95% Non-condensing |
| Protection Rate | Customize |
| Physical | |
| Weight | ≤100g, Without Lens |

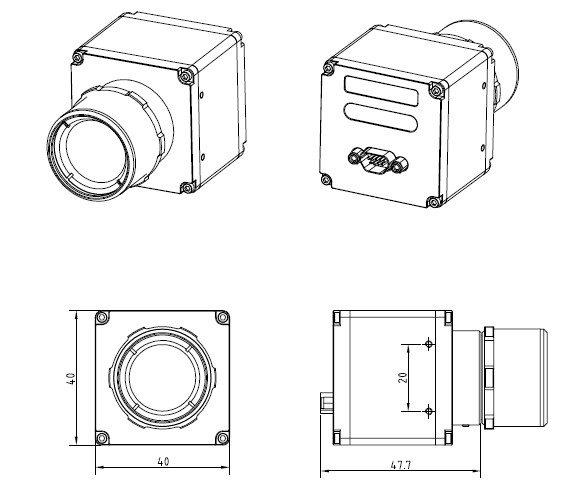

| Size | ≤40mm(W)x40mm(H)x48mm(L), Without Lens |
| Interface & Electronics | |
| Interface | J30J-9(default),Mini CameraLink(Customize) |
| Power Supply | DC 3-10V |
| Video Output | Combined:PAL@50Hz(NTSC@60Hz customize) |
| Digital Output | CameraLink Customize |
| Control | RS232(default),RS485, RS422(Customize) |
| Power Consumption | ≤2.0W(Static) |
| Start Up Time | ≤20s |
| Optional Accessories | |
| Lenses | 13mm: 45° x 37° |
| DRI [Human: 1.7m x 0.6m] | |
| Detect | 400m |
| Recognize | 200m |
| Verify | 100m |
Jiangsu Ascendent Optronics INC. (AOI) was established in 2016,
where in National High Tech Development Zone of Suzhou Industrial
Park. AOI have R&D center which with world-class core
technology, it able to development, designing and producing of
commercial infrared thermal imaging module and related products and
systems.
The company main business is optoelectronic products and
high-performance integrated circuit research and development,
production and sales, meanwhile engaged in thermal lenses
development and sales.
AOI promotes the spirit of Technological convergence, talent
convergence and activity convergence by creating a company culture
that is guided by a set of common values.
In the future, company will increase R & D investment and expand
production scale, and strive to become a leading company in China,
also a development of optoelectronic products manufacturer.
|
