| Categories | Horizontal Directional Drilling Machine |
|---|---|
| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO,CE |
| Supply Ability: | Based on the detailed quotation |
| Packaging Details: | Wooden cases standard export package |
| MOQ: | 1 set |
| Price: | Negotiation |
| Condition: | New |
| Type: | Rotary Drilling Rig |
| Power Type: | Diesel |
| Usage: | Pipeline Laying |
| Voltage: | 153KW |
| Dimension(L*W*H): | 6000*2250*2350mm |
| Weight: | 10 Ton |
| Core Components: | Pump, Gear, Engine |
| Key Selling Points: | Easy to Operate |
| Pullback Force: | 350KN |
| Thrust Force: | 350KN |
| Spindle Torque: | 13500Nm |
| Spindle Stroke: | 3500mm |
| Diameter of Guide Hole: | 130mm |
| Entry Drill Angle: | 8-20° |
| Drill Rod: | 73*3000mm |
| Diesel Engine: | 153KW/2200rpm |
| Traveling Type: | Rubber Crawler |
| Delivery Time: | 10-20 days working days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Company Info. |
| Beijing Silk Road Enterprise Management Services Co.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

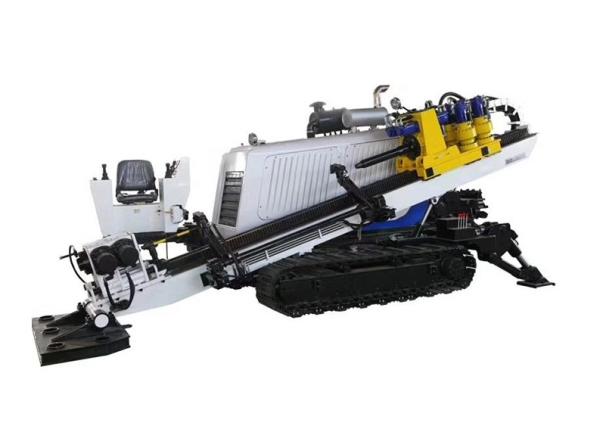

350KN Crawler Horizontal Directional Drilling Machine
Product Description
The FDP-35 Horizontal Directional Drilling Rig is a full hydraulic crawler rig. Advanced structure simple, easy to control, power head with rack and pinion drive, wireless remote control walking. The main hydraulic components are brand-name products supporting. Machine center of gravity is low, good stability, handsome in appearance. Diesel low-emission, professional noise reduction design, more suitable for urban construction.
Technical Parameters
Diesel Engine Power | Cummins QSB5.9-C210 (153KW/2200rpm) |
Max.Spindle Torque | 13500N·M |
Max.Pullback Force | 350KN |
Max.Thrust Force | 350KN |
Spindle Speed | 0-48, 0-96rpm |
Spindle Stroke | 3500mm |
Diameter of Guide Hole | 130mm |
Entry Drill Angle | 8-20° |
Pressure of Hydraulic System | 20MPa |
Traveling Speed | 2-2.6km/h |
Structural Style | Integrated with Rubber Crawler and Mud Pump |
Max. Flow Rate of Mud Pump | 320L/min |
Max. Pressure of Mud Pump | 8MPa |
Drill Rod (Dia.× Length) | 73×3000mm |
Guide Bit | 130mm |
Reamer | 350, 400, 500, 600, 750, 850 |
Dimension (L×W×H) | 6000×2250×2350 mm |
Weight | 10000kg |
|
