| Categories | Printing Consumables |
|---|---|
| Brand Name: | EcooGraphix |
| Model Number: | ECOO-INK-C |
| Certification: | ISO, Rohs |
| Place of Origin: | China |
| MOQ: | 1 ton |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Delivery Time: | 20-30 days |
| Packaging Details: | 2.5 kg in drum, vacuum sealed, 6 drums in a carton with apartion board |
| Color: | CMYK, and other specific color |
| Material: | Pigment with oil base |
| Package: | 1 kg or 2.5 kg per drum, vacuum package |
| Productivity: | 2000000 ton per year |
| Shelflife: | 3 years |
| Printing speed: | 12000rph-15000rph |
| Storage: | Room temperature 25℃, humidity 65%-75% |
| Company Info. |
| Hangzhou Ecoographix Digital Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Sheet-fed Solvent based offset printing / Lithography printing ink
Brief description of this ink
ECOO-INK-C printing ink is developed by the latest European technology system. It is made from polymeric, high-soluble resin and newly-invented paste pigment. This product is suitable for printing packaging, advertisement, label, high-quality brochures and decorative products on art paper, coated paper, offset paper, cardboard, etc., especially suitable for medium and high-speed printing.
Technical data
| Type | ECOO-INK-C |
| Printing speed | 12000rph-15000rph |
| Packing | 1/2.5kg /vacuum tin, 12/6 tins/carton |
| Shelf Life | 3 years (from the production date); product against light and water |
| Outlook | Colored paste |
| ITEM/TYPE | TACK VALUE | FLUIDITY (mm) | PARTICLE SIZE (μm) | GLOSS | SETTING TIME (min) | DRYING TIME (hr) | SKINNING TIME (hr) |
C YELLOW | 8-9 | 39±1 | 12.5 | 85 | 4 | < 8-10 | >30 |
C MAGENTA | 8.5-9.5 | 40±1 | 12.5 | 75 | 4 | < 8-10 | >30 |
C CYAN | 8.5-9.5 | 39±1 | 12.5 | 75 | 4 | < 8-10 | >30 |
C BLACK | 9-10 | 38±1 | 12.5 | 80 | 4 | < 8-10 | >30 |
| Tack Value | The value is measured in 1 minute by inkometer at 32℃ and 400rpm. | ||||||
| Set Time | Printing adapter, 157g art paper, the volume of ink-coating can be up to 0.125cc | ||||||
| Condition of test | Room temperature 25℃, humidity 65%-75% | ||||||
| ITEM/TYPE | Light Resistance | Heat Resistance | Acid Resistance | Alkaline Resistance | Alcohol Resistance | Soap Resistance |
C YELLOW | 3-4 | 5 | 5 | 4 | 4 | 4 |
C MAGENTA | 3-4 | 5 | 5 | 5 | 4 | 5 |
C CYAN | 6-7 | 5 | 5 | 5 | 5 | 5 |
C BLACK | 6-7 | 5 | 5 | 5 | 5 | 5 |
| Light Fastness | 1-8 (weak-strong) | |||||
| Others | 1-5 (weak-strong) | |||||
Features:
Environment friendly
Anti-skinning performance
Good water/ink balance
Rich in printing layer
Clear and complete in printing dots
Quick-drying performance, quick setting, quick turn

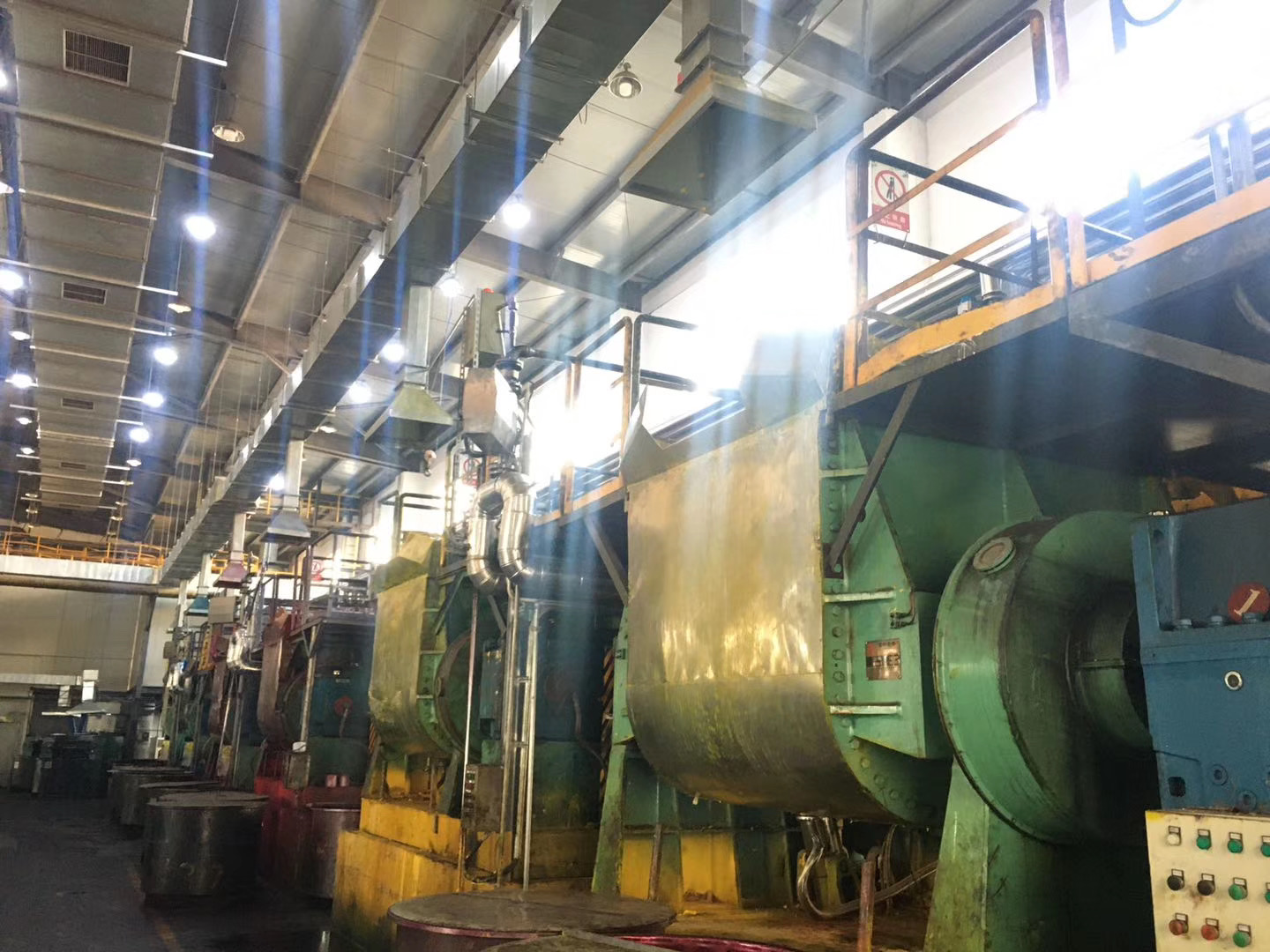

Factory
Our factory located in Shanghai. It has two producing plant and independent oil producing line. The productivity reaches up to 4000000 tons. It is certified by ISO, Rohs. You can visit at any time.

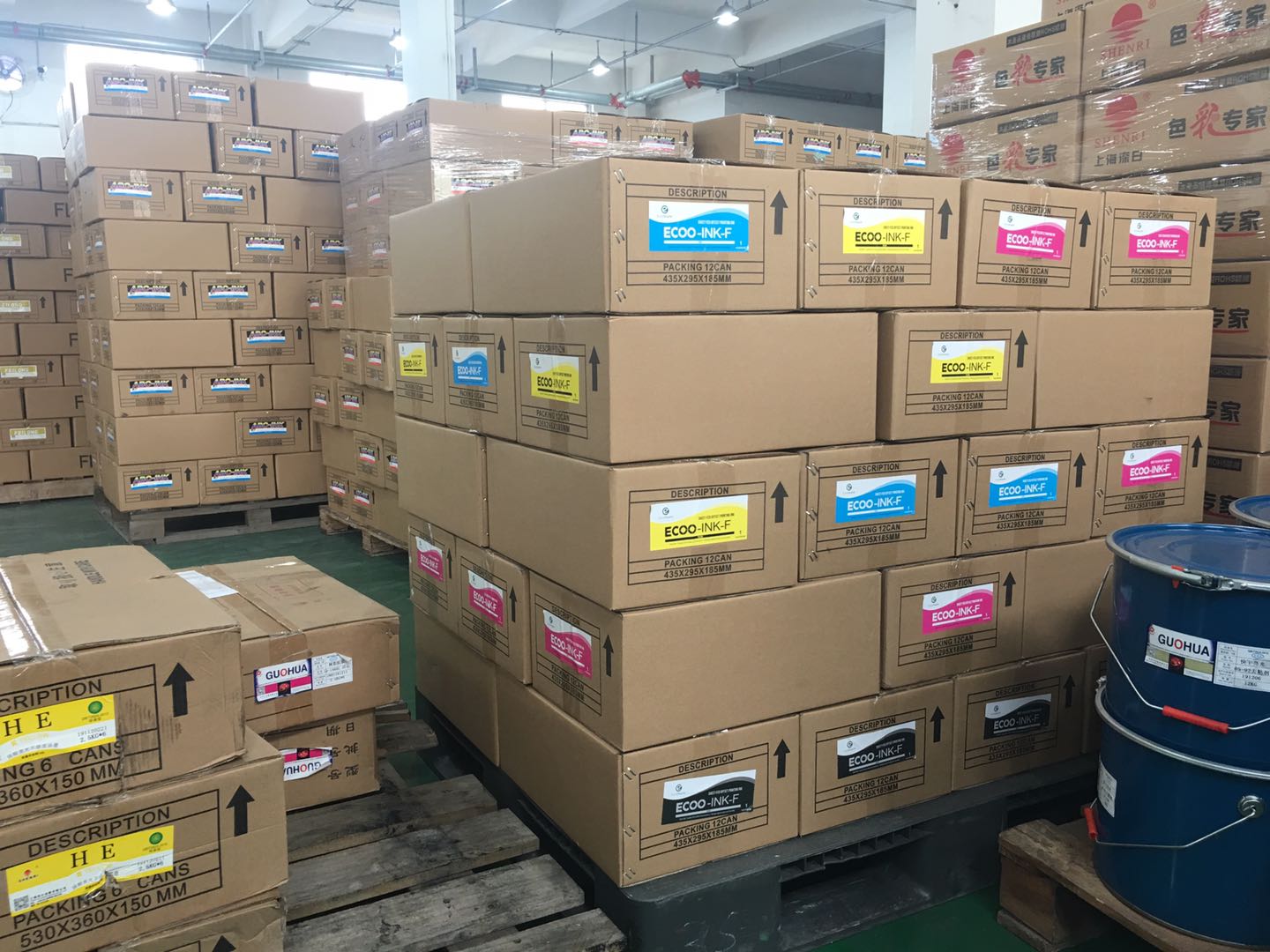

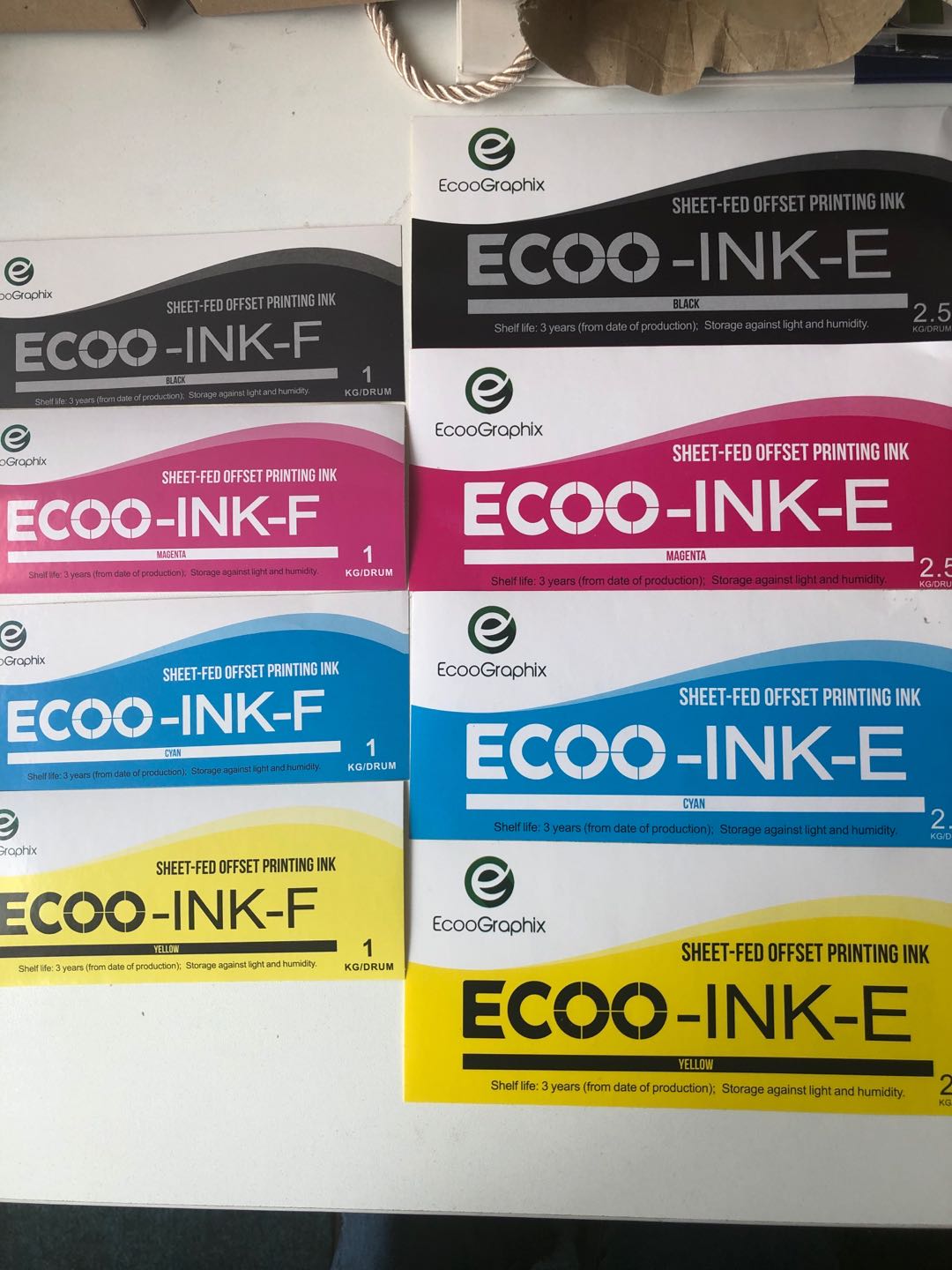

Package of our ink
The normal package is in aluminum can per 1 kg or 2.5 kg, vacuumed to secure tightly sealing and safe transportation. 6 drums or 12 drums packed in a carton which has partition board to protect and fix each drum from collision. It is standard package with enough protective layers and reasonable design.
Certifications
EcooGraphix series Printing Inks have passed the China environmental label product certification (ten central certification), ISO9001 quality management system, ISO14001 environmental protection system certification, ROHS certification and REACH certification, American ASTM, CPSIA and other related safety testing and certification, and the SONY SGS certification.
Knowledge for sheet offset printing ink, web offset printing ink and UV ink, digital printing ink
Offset printing ink is used for lithographic offset presses. It is thick and tacky. Offset printing ink consists 3 parts, the ink vehicle, the pigment and additives. It can be used on web set printing and sheet fed printing. Web offset printing ink tend to be more fluid and have less tack than sheet offset lithographic ink.
UV ink usually means UV-curable ink. UV ink dries faster. So the presses can run faster and there is led risk of offset. There is led absorption of ink in the substrate, so colors are more vivid and glossy. UV ink has lower emissions of organic solvents and it is more suitable for printing on plastic and other non-porous substrates.
Digital printing ink is transferred directly onto the surface, rather than relying on aluminum plate and rubber blanket to transfer an image. It is liquid ink and quick drying.
|
