Dog Dental Chews Treats Fully Automatic Injection Moulding Machine

Dog dental chews treats mold injection machine

Parameter

Advantage of the injection dog treats molding machine:

It has the following features:

a)Molded Pet Snacks Equipment comes with user-friendly microprocessor controller with these following features;

b)Dust, oil proof and colorful touch switch control panel.

c)El display of pressure, speed, time and distance for each motion.

d)Shut-down device with 100 presets mold data memory.

e)Equipped with 4 stages injection, 3 stages holding pressure and 3 stages back pressure.

f)PID barrel temperature control: temperature abnormal & electrical wire disconnection alarm.

g)SSR-solid state temperature controller.

h)Screw cold start protection.

i)Abnormal shot detection.

j)Output quantity and packaging quantity preset.

k)Clamping, injection and ejection (option), and carriage action (option) by linear potentiometer.

l)Screw rotating speed read-out.

m)Security code function to avoid missing data or careless changing.

n)Super low pressure clamping ensures security of user, and maintains lifespan of machine efficiently.

Technicals for injection molding machine:

Item	Name of item	Unit	DM-268
Injection Unit	Screw Diameter	mm	55
	Screw L/D Ratio	Ratio	20
	Injection Volume (Theoretical)	cm	601
	Injection Weight (PS)	g	548
	Injection Pressure	Mpa	185.1
	Injection Rate into Air	g/s	223.7/276.1
	Injection Stroke	mm	256
	Injection Speed	Mm/s	95/116
	Screw Speed	rpm	201/246
Clamping Unit	Clamping Force	KN	2600
	Clamping Stroke	mm	550
	Space Between Tie-bars	mm×mm	580 x 580
	Max. Mould Height	mm	600
	Min. Mould Height	mm	250
	Ejector Stroke	mm	160
	Hydraulic Ejection	KN	68
	Ejector Rob Quantity	pcs	9
Others	Max. Pump Pressure	Mpa	17.5
	Pump Motor Power	kw	22/30
	Heater Power	kw	15.9
	Hopper Volume	L	50
	Oil Pump Volume	L	550
	Machine Weight	t	8.5
	Mould Positioning Ring Diam	mm	160
	Sphere Radius	mm	SR10
	Machine Dimension	m x m x m	5.82 x 2 x 2

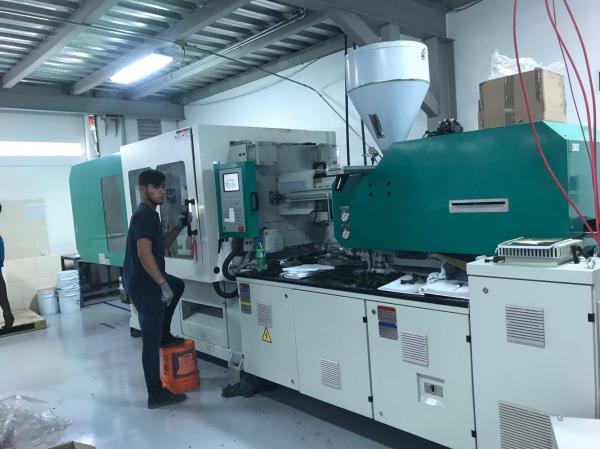

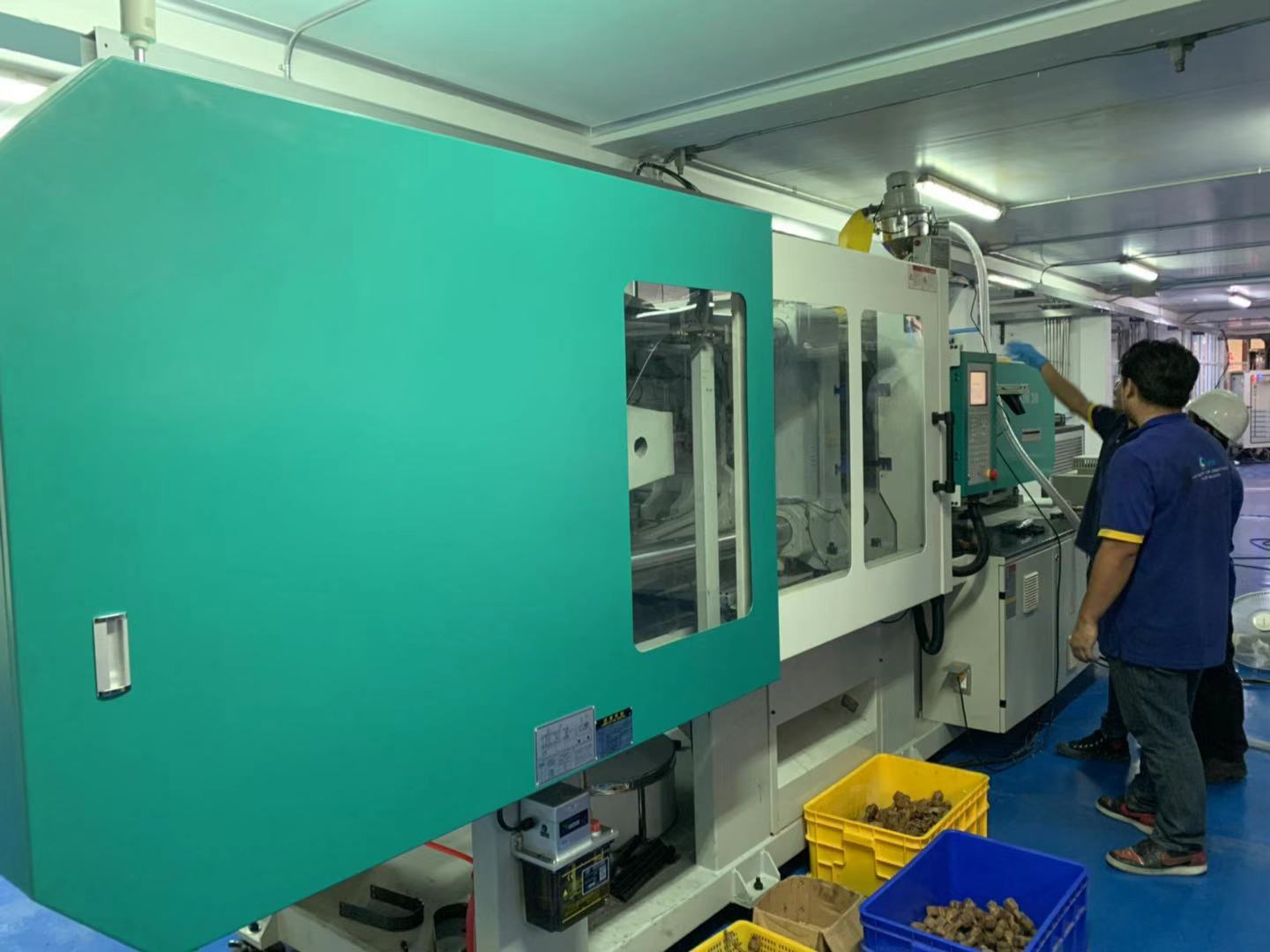

Injection molding machine and samples:

Our exhibitions:

Every year we will attend many international exhibitions to do customer visit and maintence, with us your business will be safe,your money will be safe.

OUR FACTORY :

Shandong Smart Machinery Co., Ltd is a growing company locates in Jinan, China. The main products includes:

1. Bar forming machine, which contains cereal bar moulding machine, granola bar moulding machine, nuts bar moulding machine, dehydradted fruits moulding machine, cereal bar cutting machine, granolar bar cutting machine, nuts bar cutting machine, dehydrated fruits bar cutting machine, halva bar cutting machine, protein bar forming machine, energy bar forming machine, two layers bar forming machine.

2. Automatic proportioning system

3. Chocolate coating machine and cooling tunnel

4. Automatic sorting conveyer and flow packing.

A. Finished time

The production line will be finished in 25-40 days after confirmation.

B. Payment Term

30% is paid by T/T as the down payment, 70% is paid by T/T or L/C before shipment.

C. Delivery Time

When the machines are finished, we will invite you to our factory for testing machine.

then we will arrange the worker to load container promptly after all corresponding inspection issues finished.

FAQ:

Video:

Smart plant:

https://youtu.be/gBHm04wNJA0

Working video:

https://youtu.be/M9FagjkxBKE

https://youtu.be/h-GfZbNRb6c

More details and price ,please contact us FREELY!

Shandong Smart Machinery Co., Ltd is a professional food machinery manufacturer since 2004 located in Jinan, China.

Now, about 80% of our products export to foreign markets, including Southeast Asia,Middle East, Africa, Europe, North America, Central And South America and so on. In addition, Smart establish good coopration with customers cover more than 60 countries.

Smart specialize in providing human food machine and pet food machine, our hot sale production machine line are cereal bar making machine, puff snack extruding machine, corn flakes/cereals production line, pet treats and pet food making machine.
Smart considers credit and quality vital to our life coupled with outstanding technology.
Relying on our own R&D advantages, can supply customer OEM service,and do machine design & test for free.
Welcome to contact us and achieve mutual beneficial cooperation.

The main products includes:

Smart considers credit and quality vital to our life coupled with outstanding technology. Our machines are now running in many countries and gaining more and more customers due to its reliable and optimal performance 24 hours round the clock service ⏰

You’re welcomed to contact Smart and we trust that your cooperation with Smart will be mutually beneficial to both sides!
