LPG - 500 4.5 Meter Dia Pilot Scale Spray Dryer

LPG-500 diameter 4.5meter custom industrial Spray Dryer for pig blood

Application
LPG-500 diameter 4.5meter custom industrial Spray Dryer for pig blood is widely used in the liquid technology shaping and in the drying industry. It is most suitable for producing powdered or granular solid products from liquid state materials such as solution, emulsion, suspension, and pumpable pastes. So, when the size distribution, residual water contents, stacking density and shape of final products must reach a certain precision standard, the spray drying is one of the most desired technologies.

Principle of work

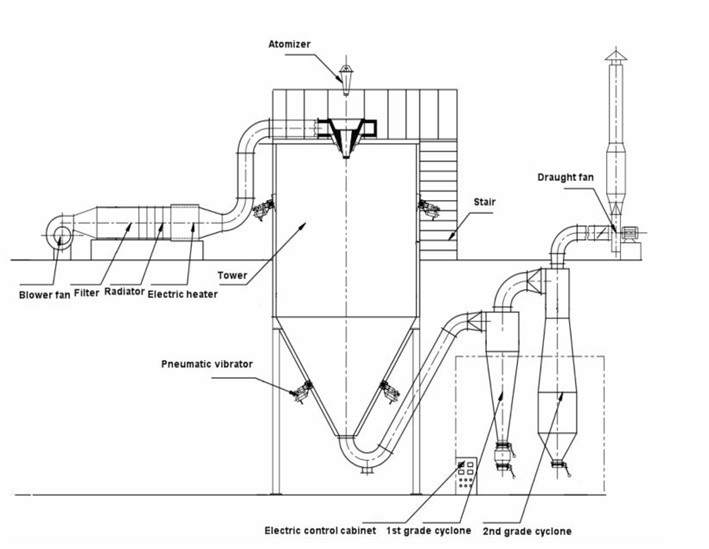

LPG-500 diameter 4.5meter custom industrial Spray Dryer for pig blood is gas-liquid co-current flow drying equipment, using high-speed centrifugal atomizer, the liquid will be atomized into fine droplets, then mix with the hot air from the distributor in the dryer, heat and mass transfer exchanges rapidly during the mixing process. In a very short period of time the liquid become dry powdered products. Production control and product quality control is convenient and reliable. It is widely used in the drying production of different types of liquids materials.

Features

1. Different types of solution, suspension, emulsion and cream paste material can be dry for a one-time production.
2. The fog moment and fog droplet of spray-drying can be slightly adjusted.
3. The hot air has been reasonable allocation, and the ceiling and walls sticky situation has been eliminated.
4. It is suitable for the drying of thermo-sensitive and non thermo-sensitive material at the same time. The product particles are smaller than pressure spray dryer.
5. Simplify the production process, easy to use, good liquidity and instant of the product.

Technical Parameters

Dried Samples
1. Inorganic: aluminum nitride, zirconia, potassium fluoride, bentonite, kaolin, barium sulfate, lead sulfate, sodium aluminum, chromium oxide, titanium dioxide.
2. Macromolecule polymers: urea-formaldehyde resin, PVC.
3. Dyes: dispersol red FB, reactive dyes, etc.
4. Chemical Agents: silica dioxide, diatomite, sodium silicate, wood calcium, sodium ligninsulfonate, naphthalene series water reducer.
5. Pesticide: carbendazol chloride wettable power.
6. Food and feed additives: casein peptide phosphate, potassium sorbate, fish serum.
7. Fertilizer: potassium humate, sodium humate.
