LIYI 1000L 200℃ 300℃ Aging Test Oven OMRON PID Controller High Heat Oven

Categories Industrial Drying Oven
Brand Name: LIYI
Model Number: LY-6140
Certification: CE
Place of Origin: China
MOQ: 1 Set
Price: 2000~10000USD
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Delivery Time: 15-30 working days
Packaging Details: Plywood pallet box
Material: 304# stainless steel
Inner size: Customize size
Max temperature: RT~200/300/400/500C optional
Inner structure: Customize carts
Controller: PID or PLC optional
Heater: Electrical heater
Voltage: 3 phase 380V
Warranty: 1 Year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

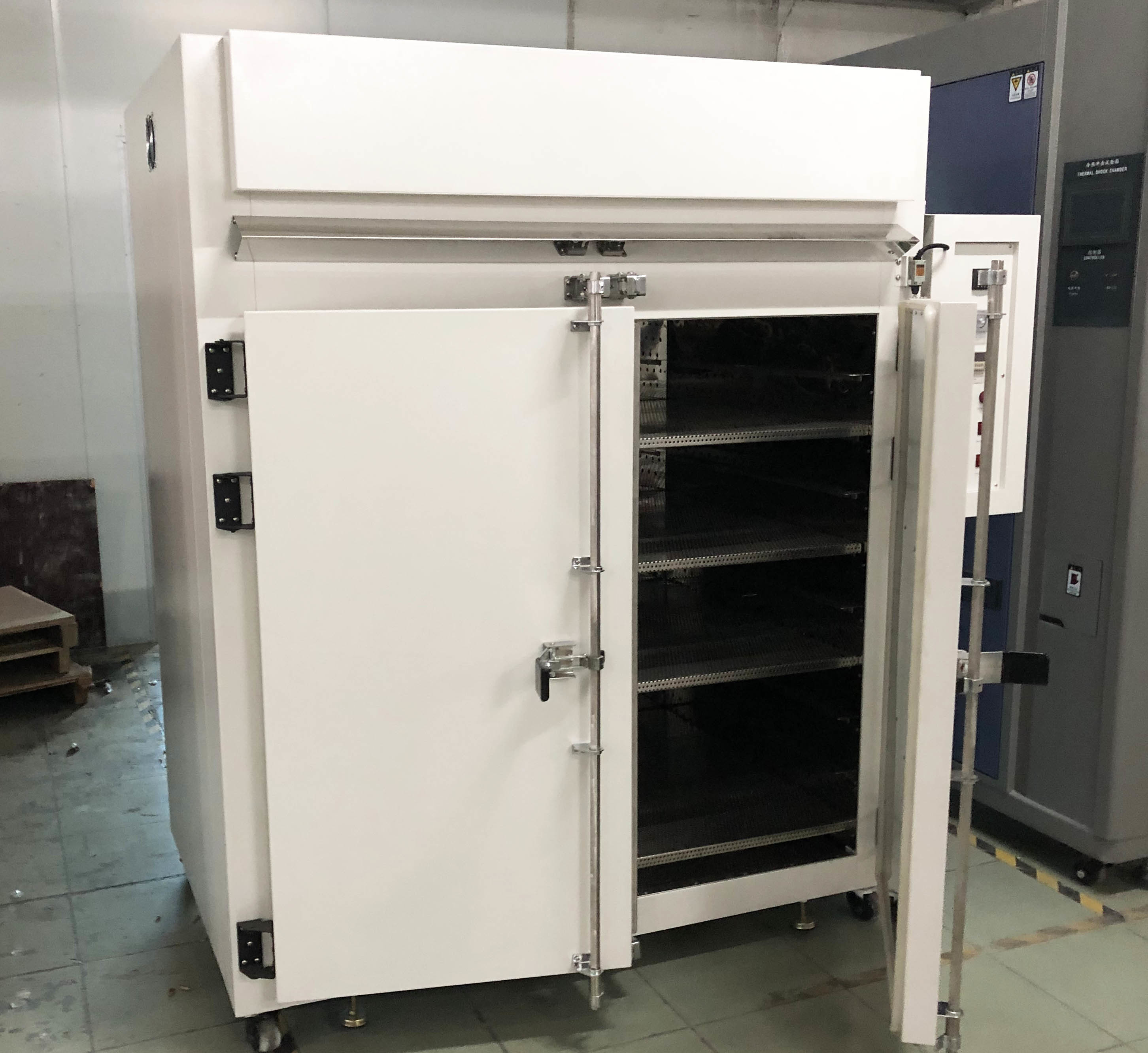

LIYI 1000L 200℃ 300℃ Aging Test Oven OMRON PID Controller High Heat Oven

LIYI 1000L 200℃ 300℃ Aging Test Oven OMRON PID Controller High Heat Oven


1000L 200℃ 300℃ Customize High Temperature Aging Test Oven with OMRON PID Controller is to make use of the electric as heat source,through heating the air by heat exchange and adopting the axial fan as the driving power,the moisture content of hot air materials is reducing so as to realize the purpose of drying.


Main Features:
1. Adopts microcomputer electronic data control, precise and reliable.
2.Attached with the observation window, it was convenient for users.
3.Heating by compulsory circulating ventilation, temperature rising fast and uniform distribution.
4.Easy to set the temperature and operate.
5. Attached with 2 sets of moveable dis to be adjusted height at random.


Application:
1000L 200℃ 300℃ Customize High Temperature Aging Test Oven with OMRON PID Controller is suitable for the aviation, aerospace, military, electronics, petroleum, chemical industry, telecommunications, medical pharmaceutical, scientific research and other industries, also it can be used for items, such as drying, baking, heat treatment, and insulation test.


Specifications:

Model

Inner Size

W*H*D(cm)


External Size

W*H*D(cm)


Temperature

Range(°C)

Heating

up

Time

Accuracy

(°C)

Uniformity

(°C)

Power

Rate of

work

(kw)

LY-64545×40×4066×92×55

(A-D)

A:200°C

B:300°C

C:400°C

D:500°C



RT~100°C

About 10min

±0.3±1%

220V

Or

380V

3.5
LY-66050×60×5070×125×65±0.3±1%4.5
LY-69060×90×5080×156×65±0.3±1%5.5
LY-610080×100×60100×166×75±0.3±1%8
LY-612090×120×60110×186×75±0.3±1%10
LY-6140140×120×60160×186×75±0.3±1%12
LY-6160160×140×80180×206×97±0.3±1%14
LY-6180180×140×100200×200×118±0.3±1%16

Temperature range
Room temperature+10~200℃(300℃)
Perform-ance
Temp.& humi fluctuation
±0.3℃
Temp.& humi uniformity
±1%℃
Temperature resolution
0.1℃
Heat up time
30min
Material
Exterior chamber material
Cold-rolled steel+Powder coating
Interior chamber material
SUS#304 Stainless steel plate
(Use SUS#201 when max.temp.is below 200℃)
Insulation
PU&fiberglass
System
Wind circulation
Cooling fan
Heating system
SUS#Stainless steel high-speed heater
Controller
PID or PLC optional
Other components
Cable port(dia.50mm),control status indicator,loading shelf(2pcs,position-adjustable)
Safety devices
Over-heat protection circuit breaker,overload protection,overload indicator
Power supply
AC 3phase380V 60/50Hz
Customization
Non-standard or special requirements are all welcome
