Energy Beverage Bottling Machine For PET Bottle

Categories Mango Juice Filling Machine
Brand Name: OEM
Certification: RoHS,CE
Place of Origin: CHINA
MOQ: 1 set
Price: Negotiation
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: 100 sets
Delivery Time: 10-30 days
Packaging Details: standard Package
Name: beverage bottling machine
Bottle type: 500 ml 1000 ml 2000 ml etc
Production capacity: 2000BPH
Washing head: 8
Filling head: 8
Capping head: 3
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

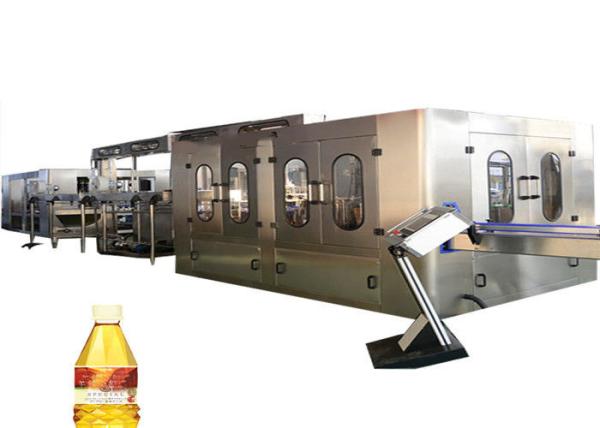

Energy Beverage Bottling Machine For PET Bottle

juice soft drink water soda liquid milk perfume oil filling machine bottle filler and capping machine capping machine



Feature :


1. with bottle neck clipping transmission structure, the bottle conveyance is stable; very convenient and swift to use different bottles for filling in the same machine by adjusting the height of conveyor and several exchanging parts.

2. with Gravityfilling theory, filling speed is quick and precision is high; the filling level is adjustable.

3. With spring type washing clipper, empty bottles are turned 180°along the guiding roll for inside rinsing; the washing nozzle adopts plum blossom shape multiple holes to rinse the bottle bottom, washing efficiency is high.

4. Capping machine adopts France technology, the capping is by magnet torque; the cap catching adopts twice catching to ensure the veracity.The capping force is adjustable, constant torque capping will not damage caps and the cap is good sealed and reliable.

5. The whole machine is operated by touch screen, controled by PLC and frequency convertor etc., with functions of no bottle no cap feeding, waiting when lack of bottles, stopping if bottle is blocked or no cap in cap guiding pipe.


Application:


Soft Drink Juice filling machine integrates washing, filling and screw capping. The whole process is automated and is mainly used for the filling of juice drinks. Most of the electrical parts of this machine adopt advanced foreign products. All the places in contact with the liquid materials are made of high-quality stainless steel. The main key components are processed by CNC machine tools. The whole machine photoelectrically detects the operation status of each part. No bottles are not available. Filling, no bottle without cover, high degree of automation, easy operation, wear, stability, low failure rate and other characteristics, product quality in the forefront of the industry, is the best choice for new and old beverage investors.


Technical parameters:


Washing head no.Filling head no.Capping head no.Production capacity(500ml)Overall size(mm)Weight(kg)

Power of main motor

(kw)

8-8-38831500-20001700*1500*210020001.8
14-12-4141253000-40002000*1760*235025002.0
16-12-6161265000-60002100*1800*240028002.2
18-18-6181867000-80002300*1900*240030003.5
24-24-8242488000-100002900*2100*240035004.5
32-32-1032321012500-150003100*2100*265043005.5
40-40-1040401015000-180004350*2880*320060005.5
50-50-1250501220000-230004850*3800*320075007.5
