Name: 5kA 3P 320Vac Lightning Protectors Type 12 Class III Class BC
Brand: BRITEC
Price: 40 USD

5kA 3P 320Vac Lightning Protectors Type 1+2 / Class I+II / Class B+C

Categories	T1+T2 Surge Arrester B+C
Brand Name:	BRITEC
Model Number:	BR320-5M 3P
Place of Origin:	China
MOQ:	100 Piece/Pieces
Price:	USD 40-80 Piece/Pieces
Payment Terms:	T/T
Supply Ability:	50000 Piece/Pieces Month
Delivery Time:	Shipped in 15 days after payment
Packaging Details:	EXPORT PACKING
Item Name:	Lightning protector
Class:	Class I+II
Type:	Type 1+2
Material:	Thermal plastic UL94-V0
Pole number:	3P
Tu:	-40℃-80℃
Uc:	320V AC
Iimp:	5kA

Contact Now

Add to Cart

Company Info.

Britec Electric Co., Ltd.

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

5kA 3P 320Vac Lightning Protector Type 1+2 / Class I+II / Class B+C

Feature:

• Equipped with a thermal disconnection.

• BR-5M 3P is built with a plug-in module and fixed base, which allows an easy and fast maintenance.

• DIN rail mounted surge protector is easy to install in any standardized distribution pane or

control cabinets.

• It is equipped with an internal thermal safety which will disconnect the unit from the AC network in

case of the end of life. This disconnection will be indicated by the turn-on of the red mechanical

indicator in the front.

Product Details:

	BR-5M-320 3P
SPD classification according to EN 61643-11	Type 1 + Type 2
SPD classification according to IEC 61643-11	Class I + Class II
Max. continuous operating a.c. voltage Uc	320V
Lightning impluse current (10/350us) Iimp	5kA
Nominal discharge current (8/20us) In	20kA
Max. discharge current (8/20us) Imax	50kA
Voltage protection level Up	≤1.5kV
Response time tA	≤25ns
Power supply system	3 phases TN-C system
Technology	MOV
Format	Plug-in modular
Operating temperature range Tu	-40℃—80℃
Operating state / fault indication	green / red
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Protection degree	IP20
Enclosure material	Thermal plastic UL94-V0
OEM	Yes
Remote Signalling	Optional

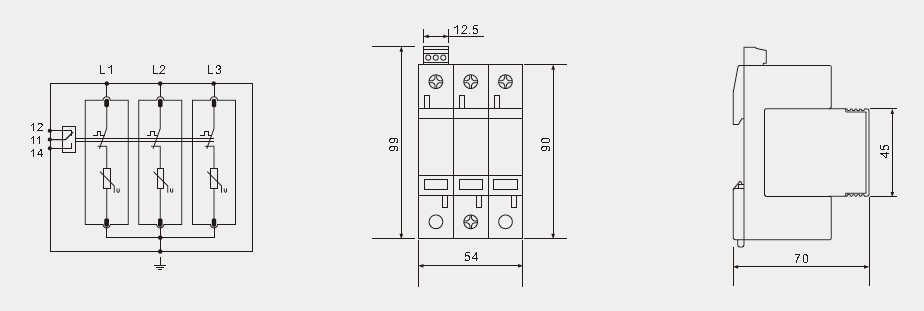

Technology characteristic:

Certification:

Production Flow:

FAQ:

Q1: What's your warranty?
A1: The warranty is 2 years.

Q2: How about inspection?
A2: Our Test standard: IEC 61643-1 / EN 61643-11/ UL1449 ed.4/GB 18802.1, and the Vibration and

Shock according standard : DIN EN 60068-2-6 and DIN EN 60068-2-27, as well as the Degree of

protection according to IEC EN60529: IP 20.

Q3: What's the standard of package?

A3: Inner box and out carton are made as per international standard and we can make special design

according to customer's need.

Q4: Could you do OEM for us?
A4: Sure,OEM is acceptable, and please supply with the brand letter of Authorization.

Q5: What is the payment terms?
A5: T.T, PayPal and L/C is acceptable.
