192X64 Stn FSTN Graphic LCD Module

Categories Graphic LCD Module
Brand Name: ROYAL DISPLAY
Model Number: RYP19264A
Certification: SGS ROHS
Place of Origin: CHINA
MOQ: 500pcs
Price: Negotiable
Supply Ability: 10k/Month
Delivery Time: 25~28 Working Days
Packaging Details: 220pcs/CTN 11Kg L45*W36*H32CM
Product Name: Industrial Application 19264 Graphic COB LCD Module RYP19264A
Model No.: RYP19264A
LCD Type: FSTN Postive
Dot Format: 192X64
LED Backlight: White Y/G
Viewing Angle: 6 O' clock
Controller: S6B0108
Operating Temp: -20º C~70º C
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

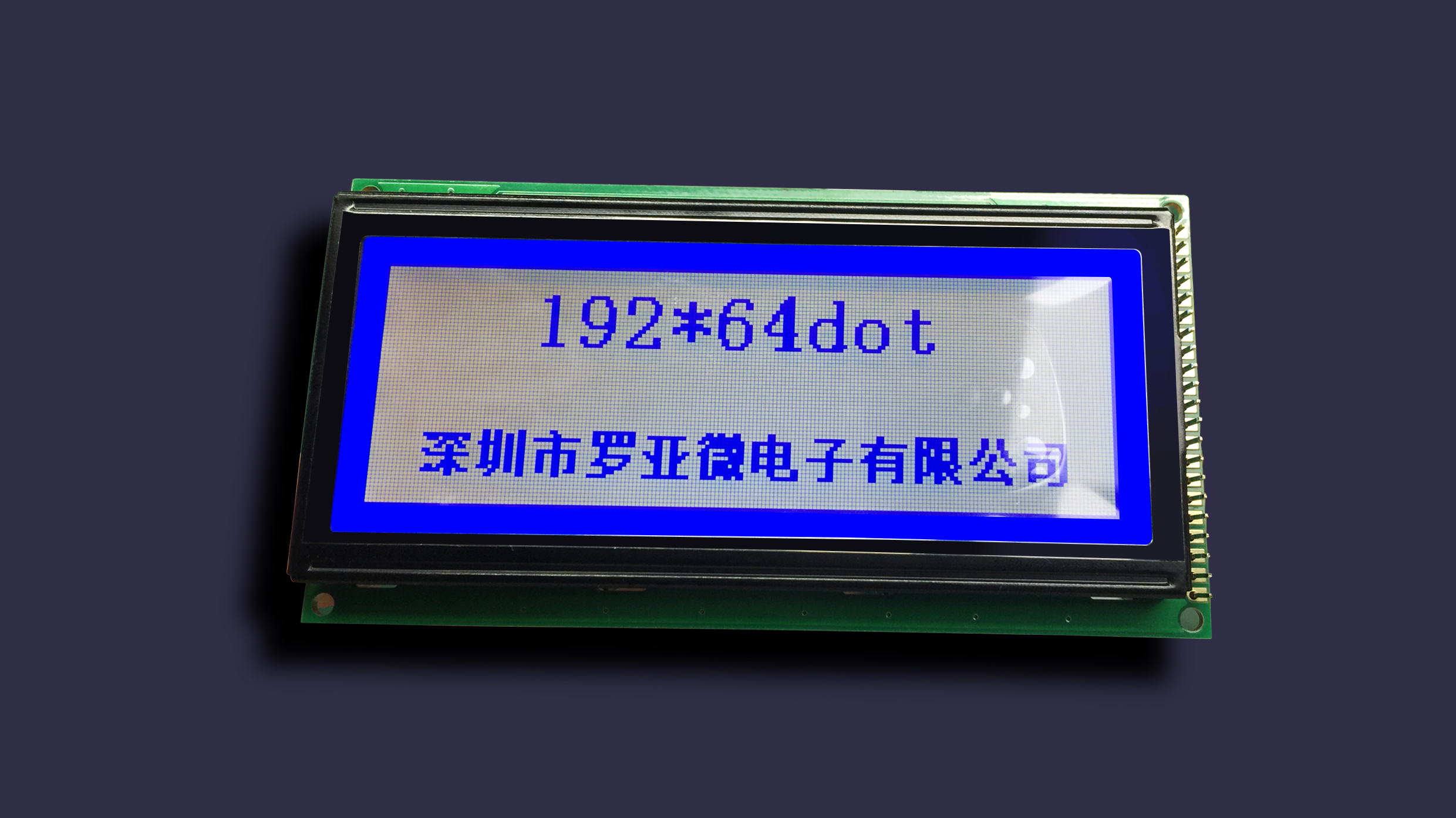

192X64 Stn FSTN Graphic LCD Module


Monochrome LCD Display Module 192X64 Stn FSTN Graphic LCD with White Backlight


General Specifications


1. 192x64 dots
2. Parallel interface
3. DC/DC on board, 5V power supply
4. Ultra high contrast, YG & White LED backlight as option
5. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option


Display Specifications


ItemDescription
Product Name192X64 dots Graphic LCD Module
Model No.RYP19264A
Dot Format192x 64
LCD TypeFSTN-Positive, STN-Blue, STN-YG
Outline Dimension(mm)130X65
Assem. Size(mm)130.0 x 53.0
Viewing Area(mm)104.0 x 39.0
Pixel Size( mm)0.468 x 0.468
Viewing Angle6 O' clock
BacklightWhite or Y/G LED backlight
Driver ICS6B0108
Power supply3V or 5V
InterfaceParallel
Operating Temp-20º C~70º C
Storage Temp-30º C~80º C


Typical Applications

Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc

Features

Transmissive, Transflective and Reflective Mode

Wide Operation & Storage temperature range
Duty Ratio: up to 1:240

support gray scale display
FAQ

Q1. How can I get the samples?


A: If you need samples, we can make as per your request .You should pay the sample fee and freight. Sample lead time always be within 2-5 days.


Q2. How to order lcd?


A:Please send us your purchase order by Email, or ask us to send you one invoice. We need to know the following information for your order.


1) Product information-Quantity, part number


2) Delivery time required.


3) Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.


4) Forwarder's contact details if you have any in China.


Q3. When can I get the datasheet?


A: When we get your inquiry, you shall first tell us the part number you want, then we can send you the datasheet immediately


Q4. How long can I expect to get the sample?


A:The samples will be ready for delivery in 5~7days.The samples will be sent via express and arrive in 5~7 days.


Custom LCD/LCM are available
