TSXDEY16A2 Schneider Discrete Input Module Modicon Premium-16 I 24 V AC

Categories Schneider Electric Parts
Brand Name: SCHNEIDER
Model Number: TSXDEY16A2
Certification: CO.CQ
Place of Origin: FRANCE
MOQ: 1
Price: inquiry
Payment Terms: T/T
Supply Ability: 10 pieces a day
Delivery Time: today
Packaging Details: new and original with factory sealed
Manufacture Year: 2020
Con 6DS1311-8AEtrol System: TSXDEY16A2
Application: Nuclear Power Plant
lead time: in stock
description: SCHNEIDER
Weight: 4lbs
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

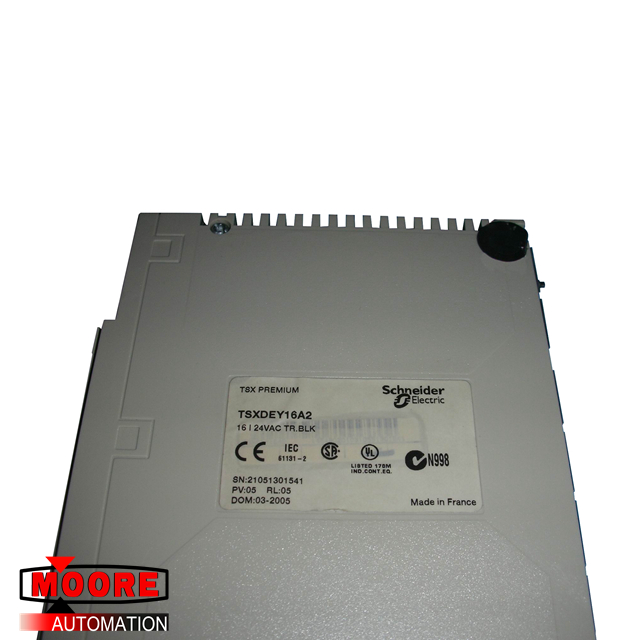

TSXDEY16A2 Schneider Discrete Input Module Modicon Premium-16 I 24 V AC


TSXDEY16A2 Schneider Discrete input module Modicon Premium-16 I 24 V AC


Brand/ManufacturerSchneider/FRANCE
Part Number

TSXDEY16A2

Alternate Part Number

TSXDEY16A2

DescriptionDiscrete input module
Dimennsions7.4cm x 15.0cm x 18.6cm
Weight0.31kg

Product Details

Main

Range of product: Modicon Premium Automation platform

Product or component type: Discrete input module

Discrete input number: 16 resistive isolated EN/IEC 61131-2 type 2; 16 resistive isolated

Discrete input voltage: 24 V DC negative; 24 V AC

Network frequency: 50/60 Hz 47…63 Hz AC

Sensor power supply: 19…30 V DC; 20…26 V AC

Input compatibility: With 2-wire/3-wire proximity sensors EN/IEC 60947-5-2

Discrete input current: 15 mA AC; 16 mA DC


Complementary

Voltage state 1 guaranteed: <= 10 V DC; 10 V AC

Current state 1 guaranteed: >= 6.5 mA DC; 6 mA AC

Voltage state 0 guaranteed: >= 19 V DC; 5 V AC

Current state 0 guaranteed: <= 2 mA DC; 4 mA AC

Input impedance: 1600 Ohm at state 1

Response time: 15 ms; <= 20 ms

Isalotion resistance: < 10 MOhm 500 V DC

Power dissipation: (1 W + 0.4 W x No of channels used) DC; 0.89 W AC

Electrical connection: Screw terminal

Marking: CE

Current consumption: 80 mA 5 V DC

Module format: Standard

Net weight: 0.68 lb(US) (0.31 kg)


Environment

Dielectric strength 1500 V AC 50/60 Hz

Standards CSA C22.2 No 213 Class I Division 2 Group B

93/68/EEC

CSA C22.2 No 142

73/23/EEC

EN/IEC 61131-2

IEC 60664

89/336/EEC

UL 508

CSA C22.2 No 213 Class I Division 2 Group D

92/31/EEC

CSA C22.2 No 213 Class I Division 2 Group A

CSA C22.2 No 213 Class I Division 2 Group C
