| Categories | Face Recognition Infrared Thermometer |
|---|---|
| Brand Name: | GENIVISION |
| Model Number: | MAD-080 |
| Certification: | CE/FCC/CCC |
| Place of Origin: | China |
| MOQ: | 1pcs |
| Payment Terms: | L/C, Western Union, T/T |
| Supply Ability: | 300pcs/month |
| Delivery Time: | 7-15days |
| Packaging Details: | carton case and wooden case |
| Material: | Metal case+tempered glass panel |
| Color: | black and silver |
| Stand: | floor standing or fixed on the access |
| software: | yes |
| language: | Chinese and English |
| OS: | Android |
Non Contact Face Recognition Fever Human Body Temperature Alarm LCD AD Screen Floor Standing Personnel Management
Smart Facial recognition & Check-in management system, with Rockchip RK3288/RK3399 high performance platform, dual industrial class camera and face recognition technology,and infrared human body temperature measurement module, is a high-performance, high reliability product., supporting 1:1 and 1:N face comparison and retrieval, mask recognition, human body temperature detection, high temperature warning, and Identity Card reader, fingerprint instrument and other peripheral extensions. It can be applied to access control and attendance for safe and efficient access control of personnel.

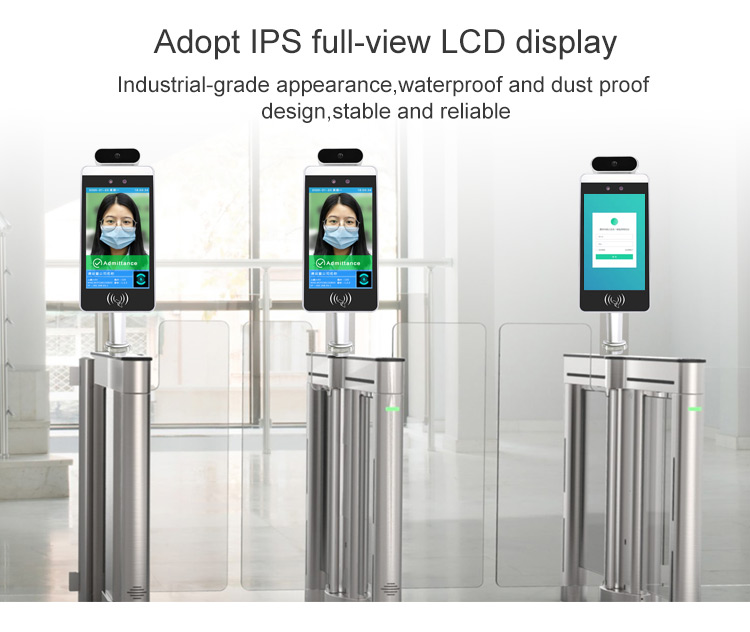

1. Use 8 Inch IPS LCD screen
2. Industrial grade, waterproof

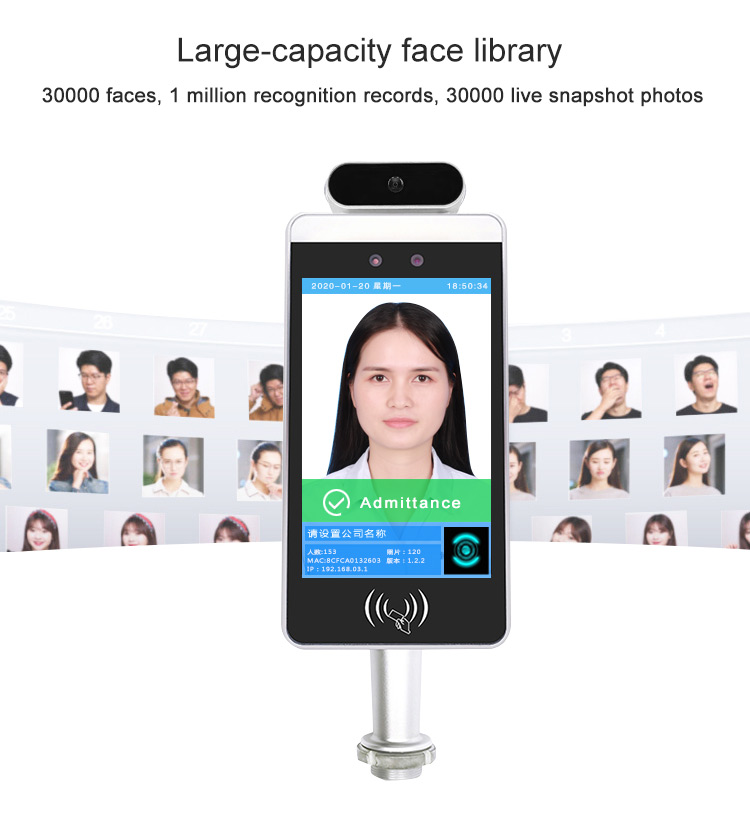

3. Support face recording database of 30,000
4. Support face accurate detection and matching when people wearing
mask
5. Use industrial grade two-eye dynammic camera
6. Has Rockchip RK3288 Quad-core CPU
7. Support human body temperature long distance detection of more
than 1M, automatic alarm for abnormal temperature
8. Support various API connection for system, support secondary
development
| Panel Specification/Product Show | |||||||
| Resolution | 1280*800 IPS panel | ||||||
| Display area | 107.64(W)×172.224(H) mm | ||||||
| Brightness | 200cd/m2 | ||||||
| Number of Color | 16.7M | ||||||
| Response time | 8 (ms) approximately | ||||||
| Contrast | 800:1 | ||||||
| View angle | 170°/170°(H/V) | ||||||
| Life Time | > 50000 (hours) | ||||||
| Power Supply | DC12V (±10%) | ||||||
| Power Consumption | 14W | ||||||
| Camera | 2.0Mpx, Binocular wide dynamic camera | ||||||
| Focus distance | 50-150cm | ||||||
| White balance | Automatic | ||||||
| LED flash | LED and dual IR LED light compensation | ||||||
| Speaker | 2.5W/4R | ||||||
| Face recognition | Support several face detection together | ||||||
| Face recording database | 30,000 at most | ||||||
| 1: N face recognition | Suport | ||||||
| 1: 1 face comparison | Suport | ||||||
| Stranger detection | Suport | ||||||
| Identify distance configuration | Support | ||||||
| UI interface configuration | Support | ||||||
| Upgrade remotely | Support | ||||||
| Display interface | Interfaces include device management, personnel / photo management, record query, etc. | ||||||
| Deployment model | Support public cloud deployment, privatized deployment, LAN use, stand-alone use | ||||||
| Temperature detection | Support | ||||||
| Temperature detection distance | 1 meter (optimal distance 0.5 meter) | ||||||
| Temperature measurement range | ≤ ±0.5℃ | ||||||
| Testing range | 10℃~42℃ | ||||||
| Thermal field of view | 32 X 32℃ | ||||||
| Visitors' temperature is normal and released directly | Support | ||||||
| Abnormal temperature alarm | Support (temperature alarm value can be set) | ||||||
| Waterproof | IP65 | ||||||
| Installation | Gate machine, height can be adjusted | ||||||
| Photo Formats | JPEG ,BMP ,GIF ,PNG | ||||||
| Audio Formats | MP3,WAV,WMA | ||||||
| Video Format | MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V | ||||||
| Shell Material | Aluminum+Metal | ||||||
| Bare diemension | 274.24*128*21.48(mm), N.W.: 1.45kg | ||||||
| Touch Type | NO | ||||||
| Normal Working Temperature | 0℃~60℃ | ||||||
| Normal Storage Temperature | -20℃~60℃ | ||||||
| Packing list | Machine * 1, power adapter * 1, manual * 1, certificate of conformity * 1 | ||||||
| OSD Language | English, Chinese, French, German, Italian, Spanish,Arabic etc. | ||||||
| Mainboard Hardware Configuration | |||||||
| CPU | RK3288 Quadcore Cortex-A17 1.8GHz | ||||||
| RAM | DDR3 2G | ||||||
| Memory | 8G | ||||||
| Internet connetcion | Wifi, RJ45 | ||||||
| System | Android7.1 | ||||||
| USB port | OTG*1, USB HOST*1 | ||||||
| RS232 | 1 | ||||||
| Relay output | 1 signal output for door openning | ||||||
| Wiggins interface | 26/34 output*1, 26/34 input | ||||||
| Upgrade | Support Uboot upgrade | ||||||
|
