90cm Stretched LCD Display , Slim Bezel Long LCD Screen Wide View Angle

0.9m 90cm 35 inch stretched LCD long bar shelf edge LCD display digital signage advertising screen from sunchip

CHARACTERS:

· Resizing LCD (Stretched LCD, Bar LCD)

· Ultra-Wide Screen

· Wide View Angle

· Flexible Central Management System

· Multi-zone, Multi-media Display

· Web-based Scheduling and Content Management

· Simple to Install, Manage and Use

· Easy Deployment and Operation

· Slim Bezel

· Stretched LCD Monitor of 19,1’’, 21.9’’, 23.1’’, 28’’, 28.8’’, 35’’, 36.6’’, 38’’ etc. are available

· Support many media formats and animation text

· 365 x 24 hours working

PRODUCTS SPECIFICATIONS

Item		Specification	Unit
Screen Parameters	Active Area	878.4 (H) x 48.19 (V) (35” wide diagonal)	mm
	Max Resolution	2880(H) x158(V)	/
	Bezel Opening Area	880.4(Length) * 50(Width)
	Frame rate	60	Hz
	Driver Element	a-Si TFT Active Matrix	/
	Pixel Number	158 x 2880	pixel
	Pixel Pitch (Sub Pixel)	0.11025 (H) x 0.334(V)	mm
	Pixel Arrangement	RGB Vertical Stripe	/
	Display Colors	1.07G colors (8-bit+FRC)
	Display Operation Mode	Transmissive mode / Normally black
	Surface Treatment	AG~40% / Hardness 2H
	Rotation Function	Unachievable
	Viewing Angle (H / V)	Typical 178 / 178	degree
	Brightness	Typical 400	cd/m2
	Contrast Ratio	Typical 3000	/
Item		Specification	Remarks
Finished Device Parameters	CPU	ARM Cortex-A9 Quad Core
	GPU	Mali 400 Quad. Cores 3D GPU
	DDR	1GByte LPDDR3	Max Support 2GByte
	eMMC	8GByte	Max Support 128GByte
	LCD	35’’ stretched Display, 158*2880 resolution
	WIFI	2.4G IEEE 802.11a/b/g/n
	TF slot	1 个 PUSH-PUSH TF card reader	Max Support 128GByte

Finished Device Parameters	Item	Specification	Remarks

	Microphone	no
	keys	reset*1
	Camera	no
	USB	OTG1 (Micro USB), Micro USB 2
	Nominal Input Voltage	AC 100V-240V
	Rated Frequency	50/60Hz
	Input Current	2A
	OS	Android 5.0
	Interface style	standard Android tablet UI
	Format for pictures	JPG,JPEG,BMP,GIF,PNG etc formats
	Videos playing	AVI, MOV, MKV, MP4, M4V, FLV, 3GP, 3G2,3GPP, MPG, Capability for video decoding:H.265(HEVC)4K2K@30fps, 1080P@30fps,H.264(BP/MP/HP level 4.1, 1080p@30fps), H.263(profile 3,1080p@30fps), MPEG-1(MP, 1920X1080@30fps), MPEG-2(MP,1920X1080@30fps), MPEG-4(ASP,1920X1080@30fps), Xvid (Home theater 1920X1080@60fps), MJPEG(baseline,1920X1080@60fps), Divx(3.11,1280x720@60fps)；
	input	Support Android pinyin input
	APK	Support third-party APK

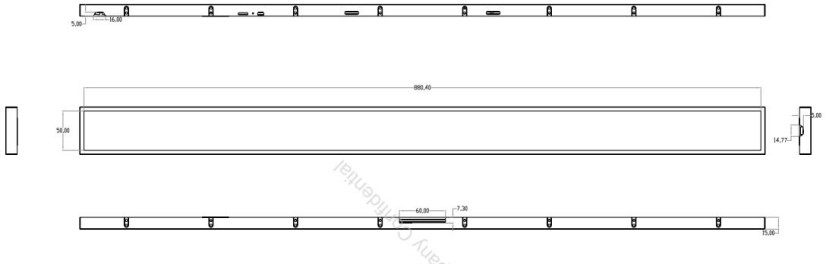

	Size	891.6(Length) * 60.4(Width)*16.0 mm
	Languages	English, Chinese Simplified, Chinese Traditional, Japanese, Korean, French, German , Spanish, Portuguese, etc. 32 languages

PACKAGING DETAILS
1, Packaging: film, foam and wooden case (international standard packaging), suitable for export.
2, Lead time: in 1 week for sample order, about 5 weeks for large order.

Our Services:

1) Original guarantee; 2) Competitive prices;

3) Offer 12 months of warranty; 4) Stable supply at least 3-5years; 5)Any question will be reply in 24 hours

OFFICE AND FACTORY

SUNCHIP: Digital Signage manufacturer in Shenzhen, China.

Our main products include Android ARM Board, Floor Standing Display, Wall Mounted Display, Stretched LCD Display, Open Frame Display and Android Media Player Advertising Box.

LOOKING FORWARD TO YOUR INQUIRY AND KIND COOPERATIONS!
WELCOME TO INQUIRE ME~

SUNCHIP mainly manufactures:

1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,

RK3328, RKPX30, RK3188, RK3128 etc.

2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.

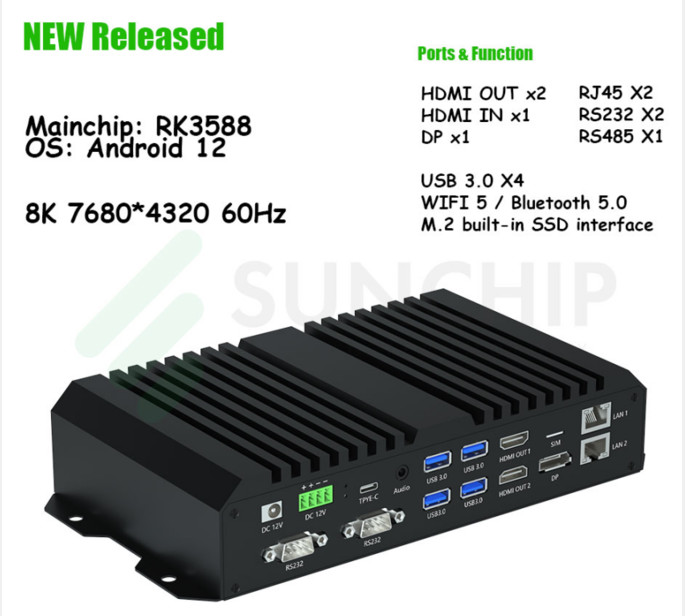

3, 【8K】Android Player Box for Industrial-Control Application: RK3588.

4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.

5, SKD Kit: Android board + LCD panel with touch or not:

7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.

6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.

7, Embedded touch desk: such as 32inch.

8, Face recognition temperature detection terminal machine: such as 8inch.

[You can also tell us your detailed requirements, so that we advise you a matched solution]

Contact: Ms. Peki Chen

SHENZHEN SUNCHIP TECHNOLOGY CO., LTD

WeChat: yanzi051624, Skype: peki_99

Email: peki@sunchip-tech.com

Mob/WhatsApp: +86-18617109639

Product Tags:


*From:	Your email address is incorrect!
*To:	SHENZHEN SUNCHIP TECHNOLOGY CO., LTD
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Stretched LCD Display
Brand Name:	ADW
Model Number:	AD-32''
Certification:	CE, ROHS, FCC
Place of Origin:	CHINA
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	10000 PCS per Month
Delivery Time:	About 30 days for large orders
Packaging Details:	Carton / Wooden case
LCD Panel:	TFT 32''
Resolution:	1920*1080 LVDS/EDP/MIPI
CPU:	ARM Cortex-A9 Quad Core
DDR, EMMC:	1G+8G
Display Operation Mode:	Normally black
Viewing Angle (H / V):	Typical 178 / 178
WIFI:	2.4G IEEE 802.11a/b/g/n
Rotation Function:	Unachievable
USB:	OTG1 (Micro USB), Micro USB 2
TF Slot:	1 *PUSH-PUSH TF card reader
