| Categories | Graphic LCD Module |
|---|---|
| Brand Name: | ROYAL DISPLAY |
| Model Number: | RYG12864M |
| Certification: | SGS ROHS |
| Place of Origin: | CHINA |
| MOQ: | 500pcs |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, , L/C, Western Union, MoneyGram |
| Supply Ability: | 10k/Month |
| Delivery Time: | 25~28 Working Days |
| Packaging Details: | 220pcs/CTN 11Kg L45*W36*H32CM, Cartons, Capboard, EPE, Blister Tray |
| Product Name: | Graphic LCD 128X64dots STN Gray Blue Film LCD Display Module |
| Model No.: | RYG12864M |
| Display Format: | 128x64dots |
| Viewing Angle: | 6 O' clock |
| LED Backlight: | White Y/G |
| Controller IC: | ST7565R |
| Operating Temp: | -20º C~70º C |
| LCD Type: | FSTN-Positive, STN-Gray |
| Connector: | FPC |
| Sunlight Readable: | Yes |
| Backlight Current (Typ): | 45mA |
| Connection: | FPC-Soldering |
| Display Model: | FSTN-Gray Positive Transflective |
| Company Info. |
| Royal Display Co.,Limited |
| Verified Supplier |
| View Contact Details |
| Product List |
Character Transflective 128x64 Lcd Display Fstn Positive COG Type
General Specifications
1. Display Format 128x64 dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. 5V power supply
5. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as
option
6. Custom size

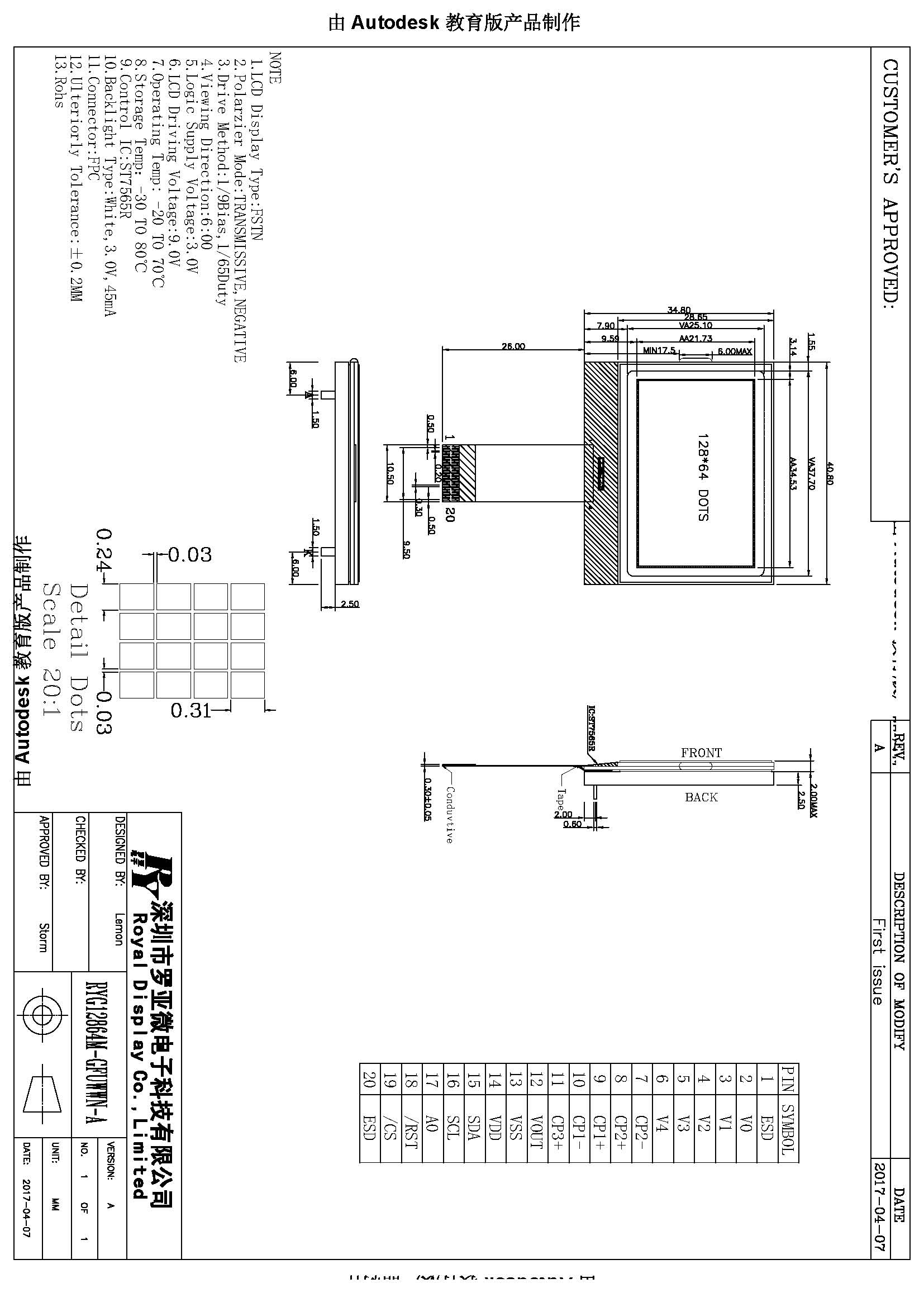

Display Specifications
| Item | Description |
| Product Name | 128x64dots Graphic LCD Module |
| Model No. | RYG12864M |
| Dot Format(dot) | 128x64 |
| Outline Dimension(mm) | 40.8x34.8 |
| VA Size(mm) | 37.7X25.1 |
| AA Size( mm) | 34.5x21.7 |
| Viewing Angle | 6 O' clock |
| LCD Mode | FSTN-Positive, STN-Blue, STN-YG |
| Backlight | White or Y/G LED backlight |
| Driver IC | ST7565R |
| Power supply | 3V or 5V |
| Interface | Parallel |
| Operating Temp | -20º C~70º C |
| Storage Temp | -30º C~80º C |
Q1. How can I get the samples?
A: If you need samples, we can make as per your request .
You should pay the sample fee and freight. Sample lead time always be within 2-5 days.
Q2. How to order lcd?
A:Please send us your purchase order by Email, or ask us to send you one invoice. We need to know the following information for your order.
1)Product information-Quantity, part number
2)Delivery time required.
3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if you have any in China.
Q3. How long can I expect to get the sample?
A:The samples will be ready for delivery in 5~7days.The samples will be sent via express and arrive in 5~7 days.
Q4. When can I get the datasheet?
A: When we get your inquiry, you shall first tell us the part number you want, then we can send you the datasheet immediately
Custom LCD/LCM are available
|
