High Rejection 5g Interference Rf Microwave Filters On C - Band Receiving

High Rejection 5g Interference Rf Microwave Filters On C - Band Receiving

High Rejection 5g Interference Rf Microwave Filters On C - Band Receiving
High Rejection 5g Interference Rf Microwave Filters On C - Band Receiving
Categories RF Microwave Filters
Price: Negotiable
Brand Name: Sinoscite
Model Number: SNSD-2797
Certification: ISO 9001:2015
Place of Origin: Sichuan, China
MOQ: 1 Piece
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 Piece per month
Delivery Time: Less than 4weeks
Packaging Details: Standard exporting carton , each product individually wrapped, high density foam protection professional packing.
Operation frequency: 3700-4200MHz
VSWR: ≤1.3
Insertion loss: ≤0.35dB
Rejection: ≥70dB@3400-3500MHz ≥63dB@3500-3600MHz ≥70dB@4800-5000MHz
Weight: 560g
Dimensions: 108*98.5*70mm
Contact Now
Company Info.
Chengdu SinoScite Technology Co., Ltd.
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

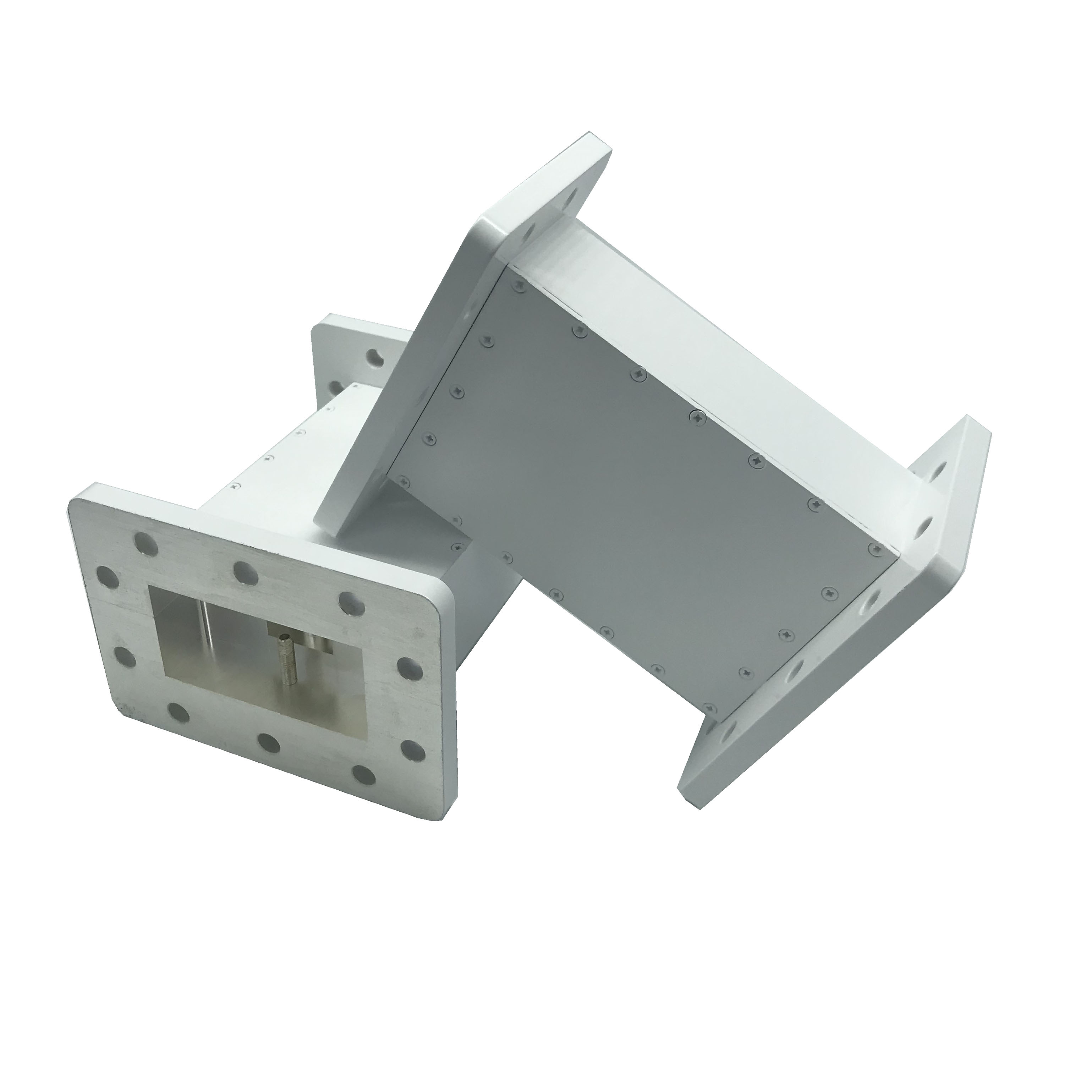

High Rejection 5g Interference Rf Microwave Filters On C - Band Receiving

RF Microwave High Rejection 5G Interference Bandpass Filter On C-band Receiving
Product Description
Product Name
5G anti-interference filter
Part No.
BPF3.7-4.2GW-2797
Function
Block the 5G signal when receive the C BAND satellite signal
Passband Frequency
3.7-4.2GHz
Insertion loss
≤0.35dB
Suppression
≥70dB@3400-3500MHz
≥63dB@3500-3600MHz
≥70dB@4800-5000MHz
VSWR
≤1.3
Working Tempreture
-40℃~+70℃
Connector
BJ40
Material
Aluminium Alloy
Color
White

  • Dimension 108*69.9*98.4mm

  • Weight: 560g

Customized Parameter: Available
Customized Dimension: Avaliable
OEM: Avaliable
ODM: Avaliable
Product Usage

  • Product usage introduction

5G Frequency: 3.4-3.7GHZ/3.6-4.8GHZ/3.6-4.2GHZ/3.5GHZ/3.6-3.8GHZ...
C BAND down-like Frequency: 3.625-4.2GHZ.
The 5G frequency is near to the C-band (3400-4200mhz, 4500-5000mhz) frequency that has long been used in satellite communications services.
With the large-scale deployment of 5G base stations, there is interference for the satellite communication.
In order to eliminate interference, our engineer design the 5G anti-interference filter.

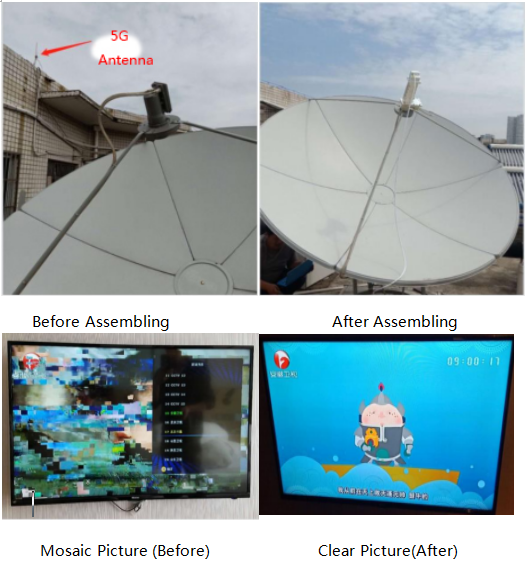

  • Description of product use effect

Before Assembling

Because the distance between the 5G antenna and the satellite antenna is less than 10 meters, the interference is very serious.
Basically, all the satellite programs cannot be viewed clearly, and the mosaic is particularly serious.

After Assembling

The signal quality returns to normal and all channels lock the signal. The picture is clear and stable.
Packing&Shipping

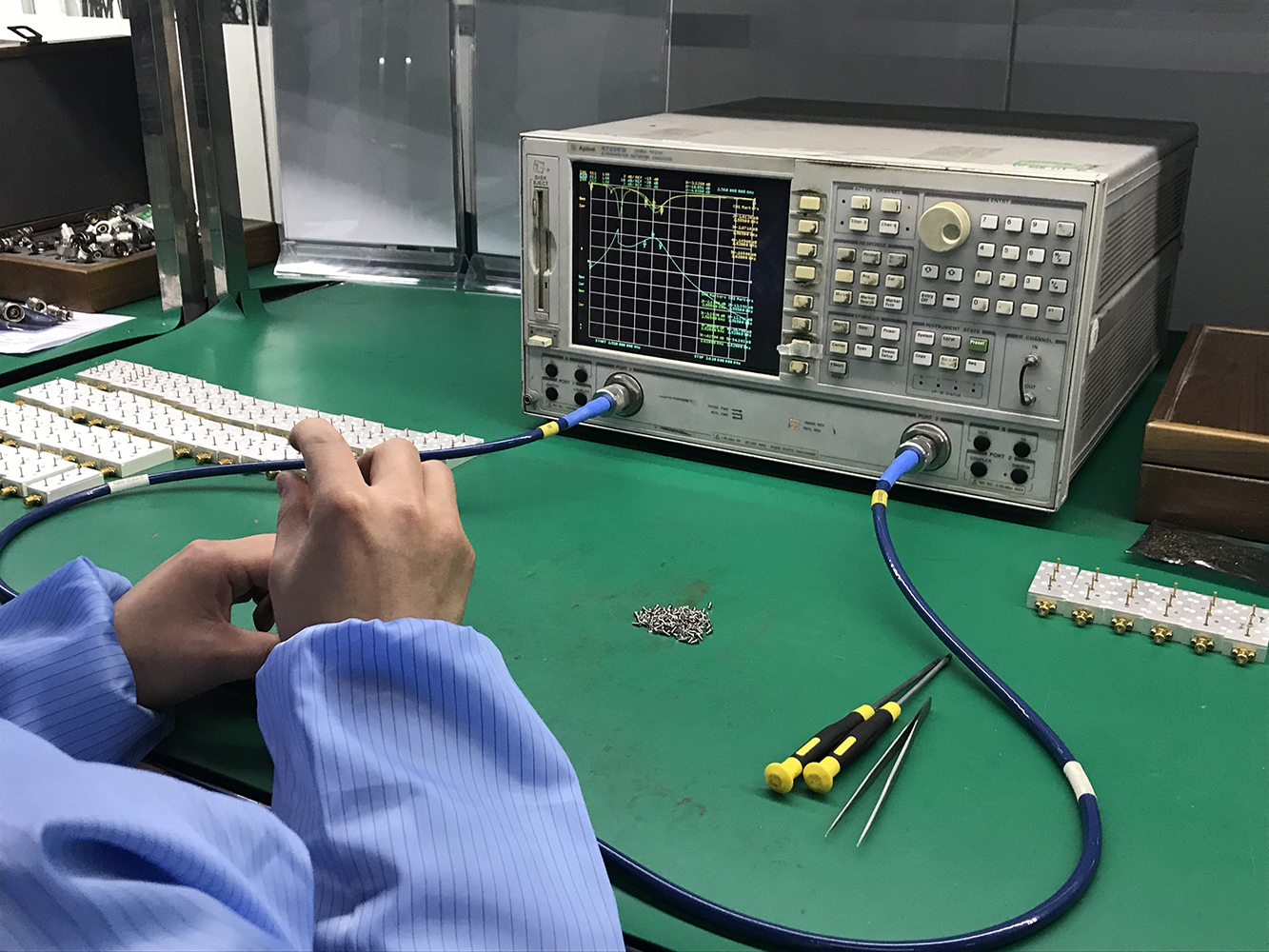

☆ Every components are examined carefully by our engineers from visual inspection to electrical inspection.
☆ Every components only can be deliveryed after our quality control engineer with a QA pass card.
☆ Eevry components are packged in a good condition with a specialized carton and full filled with poly foam.
