| Categories | RJ45 With Transformer |
|---|---|
| Place of Origin: | DongGuan of China |
| Brand Name: | DGKYD |
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 |
| MOQ: | 1 piece |
| Packaging Details: | Tray in Carton |
| Delivery Time: | 10 days |
| Payment Terms: | T/T, D/P, D/A, L/C, Western Union, MoneyGram |
| Supply Ability: | 100K pcs/day |
| Model Number: | DGKYD311Q009AF6A4D |
| Price: | Please contact us to get the latest price. |
| Housing Material: | PBT Polyester |
| LED Color: | Green & Yellow |
| Plating: | Glod plating 6u/15u/30u/50u |
| Filter: | With Filter |
| Latch: | Tab up |
| Type: | RJ45 |
| Connector Style: | Jack |
| Shielded: | yes |
| Company Info. |
| Keyouda Electronic Technology Co.,ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

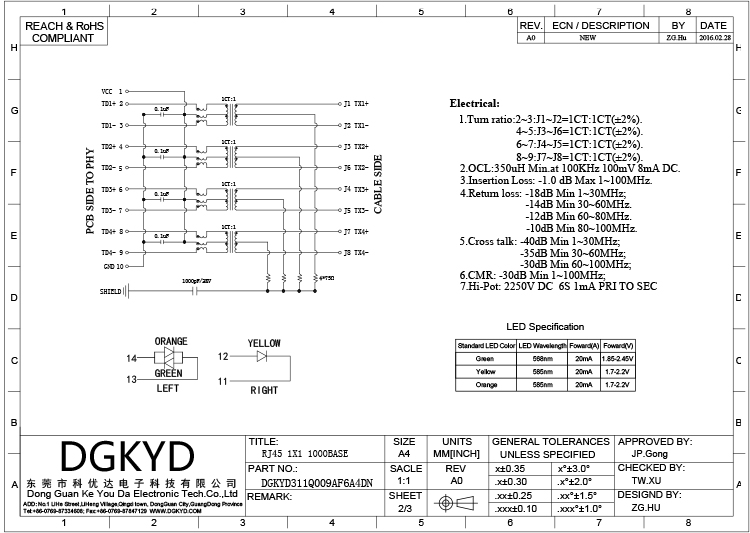

| ELECTRICAL | |||||
| Internal magnetics are 100% electrically tested for functionality per IEEE802.3 requirement | |||||
| High performance for maximum EMI suppression | |||||
| 350uH minmum OCL with 8mA bias current | |||||
| 1.Current Rating | 1.5 amps | ||||
| 2.Voltage Rating | 125vac | ||||
| 3.Insulation Resistance | 500 MΩmin | ||||
| 4.Contact Resistance | 30 MΩmax | ||||
| 5.Withstanding Voltage | AC 1500V RMS 50Hz or 60Hz 1 min | ||||
| Instertion Loss: | -1.2dB Maximum @100KHz-100MHz | ||||
| Return Loss: | -18dB Minimum @1MHz-30MHz | ||||
| -14dB Minimum @30MHz-60MHz | |||||
| -12dB Minimum @60MHz-80MHz | |||||
| Common Mode Rejection: | -30dB Minimum @1MHz-100MHz | ||||
| Cross Talk: | -30dB Minimum @1MHz-100MHz | ||||
| MECHANICAL | |||||
| 1.Insertion Force | 2 CONTACTS....350g 4 CONTACTS….500g 6 CONTACTS….750g | ||||
| 8 CONTACTS….900g 10 CONTACTS....1050g | |||||
| 2.Retention Strength | 7.7KG.F min between jack and plug | ||||
| 3.Durability | 800 mating cycles min | ||||
| MATERIAL | |||||
| 1.Housing | ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0) | ||||
| 2.Contact Wire | Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness | ||||
| phosphor bronze alloy selective gold plating over nickel | |||||
| 3.Shield | 0.20~0.25mm thickness brass with tin plated | ||||
| 4.Gold Plating | 3u inch,6u inch,15u inch,30u inch,50u inch | ||||
| 5.LED Specification | LED Color: | LED Wavelength: | Forward(V MAX): | Typical (V TYP): | Luminous Intensity: |
| Green | 560-580 nm | 2.5V | 2.1-2.2V | 9-25 MCD | |
| Yellow | 580-610 nm | 2.5V | 2.1-2.2V | 9-30 MCD | |
| LED intensity/wavelength measured with Photo Research PR-650 Colormeter | |||||
| With a forward current of 20 mA,Absolute Maximum Ratings (Ta=25°C) | |||||

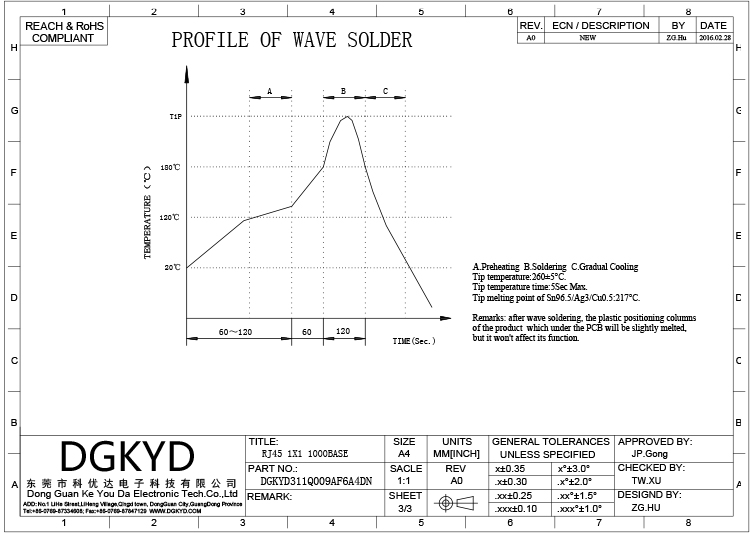

| 6.RoHS peak wave solder | RoHS peak wave solder temperature rating 240°C±5°C | ||||
| ENVIRONMENTAL | |||||
| Operating Temperature: | -40°C to 85°C | ||||
| Working Temperature | -40°C to 85°C | ||||
| APPLICATION | |||||
| NETWORKING PRODUCTS: NIC, HUB, SWITCH, ROUTER, BRIDGE,WORK | |||||
| STATION: PC/SYSTEM, PRINTER,SERVER,NB,IACABLE MODEN,XDSL APPLICATION, SET-TOP-BOX. | |||||
