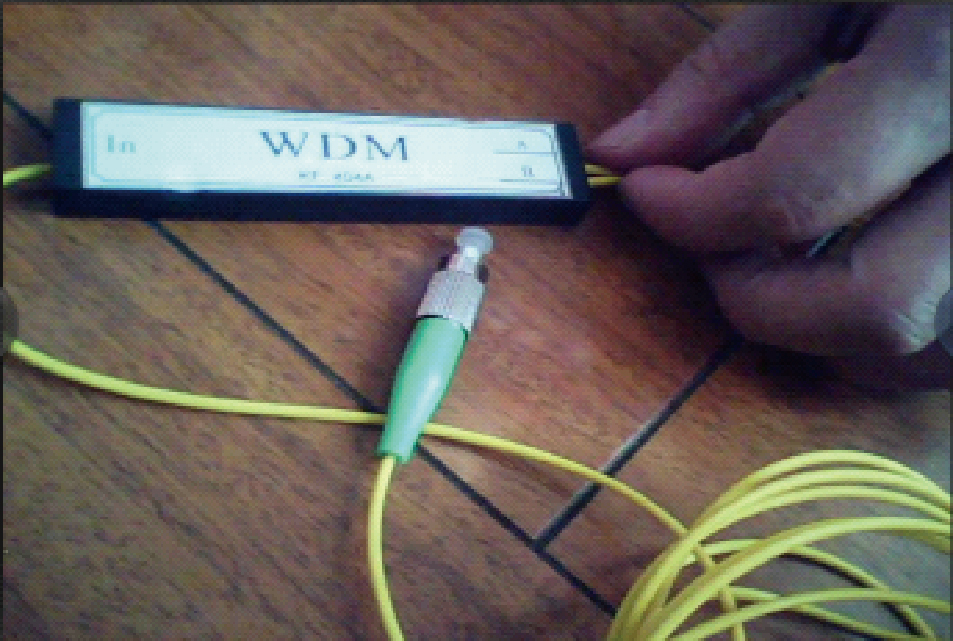

WDM Wavelength Division Multiplexing

WDM Wavelength Division Multiplexing

Features:

￭ Compact size；

￭ Low insertion loss;

￭ High channel isolation;

￭ High stability and reliability.

Application:

￭ Singal division and multiplexing

￭ Optical equipments

￭ High speed optical transmission

￭ WDM systems

￭ Optical network monitor system

Specification

Parameter	Standard
Pass Channel Operation Wavelength (nm)	1310 or 1480 or 1550
Reflect Channel Operation Wavelength (nm)	1310 or 1480 or 1550
Pass Channel Insertion Loss (dB)	＜0.6
Reflect Channel Insertion Loss (dB)	＜0.8
Pass Channel Isolation (dB)	＞30
Reflect Channel Isolation(dB)	＞15
Directivity (dB)	＞55
Return Loss (dB)	＞50
Pass Band Ripple (dB)	≤0.3
Optical Power Handling (mW)	＜500
Operating Temperature (℃)	0~+70℃
Storage Temperature (℃)	- 40~+70℃

Ordering Information

Wavelength

Fiber Type

Fiber Length

Connector

35=1310/1550nm

63=1550/1310nm

45=1480/1550nm

54=1550/1480nm

φ0.25=250μm

φ0.9=900μm

1=1 Meter

2=2Meter

FC/APC , FC/PC , SC/APC , SC/PC , ST , LC , MU
