Gate Drive Switch Mode Transformer , Q4470-CL SMT Mini Electrical Transformers

Categories Switch Mode Transformer
Brand Name: Shareway
Model Number: Q4470-CL
Certification: CE UL RoHS ISO9001:2008
Place of Origin: Guangdong China
MOQ: 100/500/1000
Price: Supportive
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Delivery Time: Stock or 3 weeks
Packaging Details: Tray in Carton
Product name: Q4470-CL Miniature SMT Switch Mode Transformer For Gate Drive
Usage: Power
Coil Number: Autotransformer
Other name: manufacturers switching mode transformer 15v 150w
Core Matrial: Ferrite core
Bobbin Type: horziontal
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
  • Submit Buying Request
    • Product Details
    • Company Profile

    Gate Drive Switch Mode Transformer , Q4470-CL SMT Mini Electrical Transformers

    Q4470-CL Miniature SMT Switch Mode Transformer For Gate Drive


    Product description:

    Miniature SMT Transformers


    Feature:

    These miniature transformers were developed for use with Maxim RS-232/RS-485 interface ICs,

    and are suitable for gate drive and other power applications. They were designed to work with

    the MAX250, MAX251, MAX253 and MAX845 for providing power to the isolated side of the interface.
    Sipex and others for use with their chipsets. They feature 1500 Vrms isolation between windings in a
    miniature surface mount package. Each transformer has a stainless steel cover that provides an

    excellent surface for automated placement.


    Part

    number

    Pri / sec

    voltage

    Inductance

    min (μH)

    Volt-time

    product

    typ (Vμsec)

    DCR max (Ohms)

    Isolation

    pri-sec

    (Vrms)

    Pri / sec

    capacitance

    typ (pF)

    Pri : sec

    Turns

    ratio

    Power

    (W)

    prisec
    Q4470-CL5 V to 5 V400 (1-3)32 (1-3)0.950 (1-3)1.25 (6-4)1500 (1-4)0.871 CT : 1.3 CT0.25
    S5394-CL5 V to 10 V400 (1-3)32 (1-3)0.950 (1-3)0.950 (6-4)1500 (1-4)0.921 CT : 10.25
    U6982-CL3.3 V to 5 V59 (1-3)22 (1-3)0.700 (1-3)1.800 (6-4)1500 (1-4)0.931 CT : 2.1 CT0.75
    T6437-DL5 V to 5V1000 (1-4)134 (1-4)1.010 (1-2, 3-4)1.955 (8-5)1500 (1,3-8)1.881 CT : 11.5
    S5499-DL5 V to 24 V160 (1-4)48 (1-4)0.540 (1-2, 3-4)4.28 (8-7, 6-5)1500 (1,3-8,6)1.591 CT : 5 CT1.0
    T6650-DL5 V to 24 V176 (2-3)48 (2-3)1.015 (2-3)8.250 (7-6)1500 (2-7)1.251 : 51.0

    1.Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc
    2. Leakage inductance measured at 100 kHz, 0.1 Vrms with secondary pins shorted.
    3. SRF measured with coils connected in series using an Agilent/HP 4192 or equivalent.
    4. Operating temperature range −40°C to +125°C.
    5. Electrical specifications at 25°C.


    Q4470-CL Miniature SMT Switch Mode Transformer For Gate Drive

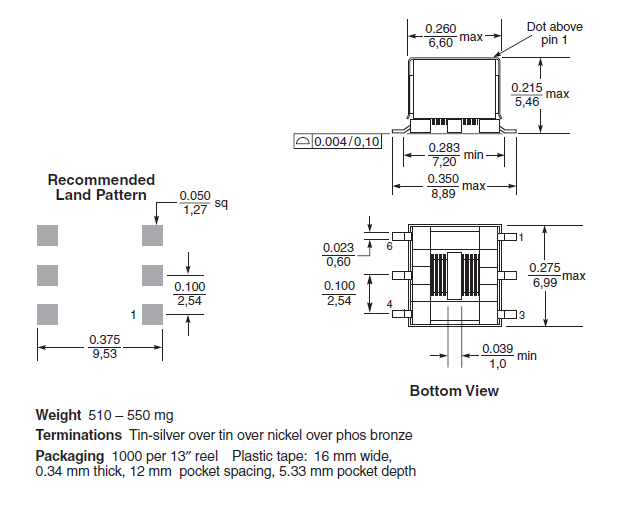

    Shape and Dimensions:


    Q4470-CL Miniature SMT Switch Mode Transformer For Gate Drive


    HOW TO ORDER
    1. Please send me your datasheet or part number you need.
    2. We will offer the replacement quotation for your reference
    3. The free samples are available for your approval.
    4. After sample testing, we will step into the mass order.
    5. The Proforma Invoice will send for your confirmation
    6. After the goods finished, we send the goods to you and tell you the tracking number.
    7. We will track your goods until you receive the goods.

    Remarks:
    1. Sample orders are avaliable.
    2. Price is negotiable for orders of large quantity.
    3. Customized orders (OEM/ODM orders) are avaliable.
    4. Contact us for available flavors list. International Certifications:
    1. ISO9001:2008
    2. UL
    3. Reach
    4. RoHs

    Our service:
    1. 100% tested before shipping
    2. Have alternative for Halo, Pluse, Wurth, We-online, Chilisin, Coilcraft......Same quality but better price
    3. Free sample available
    4. Provide new design for customer
